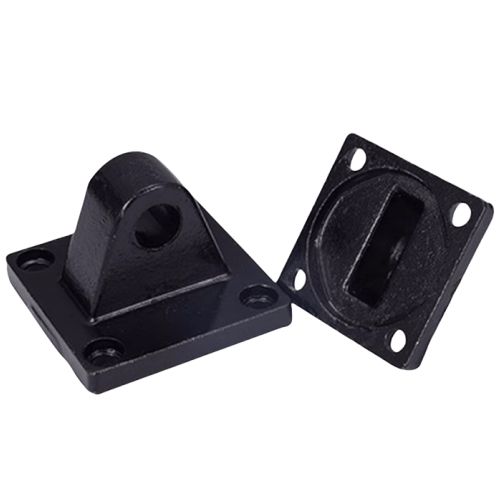

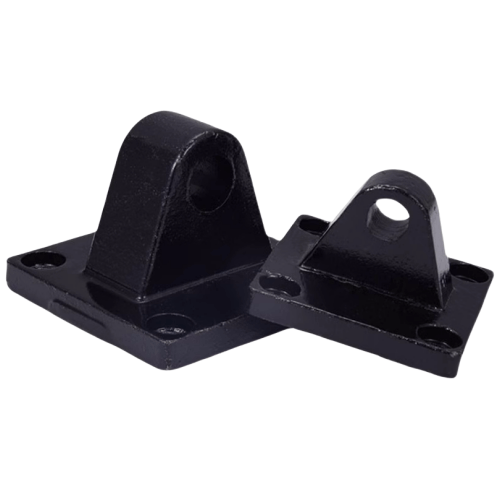

Airtac F-SC-CA Single Lug Bracket Assembly F-SC200CA
AirTAC F-SC-CA Single-Ear Mounting Bracket Kit F-SC200CA Specifications
- Model: F-SC200CA (Complete Kit)
- Material: Aluminum alloy ADC12
- Surface treatment: Anodized (Black)
- Mounting hole diameter: φ6.6±0.1mm
- Compatible cylinder series: SC/SU/SE 32-100mm bore size
- Max lateral load capacity: 1,200N
- Operating temperature: -20℃ to 80℃
- Corrosion resistance: 500hr salt spray tested
- Weight: 0.25kg (including fasteners)
- Dimensions: 200mm(L) × 30mm(W) × 40mm(H)
- Fastener grade: Class 8.8 steel bolts
- Kit contents: Bracket ×1, Hex bolts M6×12 ×2, Flat washers ×2, Spring washers ×2
Robust single-point mounting solution designed for side-load applications in pneumatic systems. Features precision-machined alignment grooves and reinforced rib structure that maintains positional accuracy under vibration. The zinc-nickel plated fasteners provide anti-loosening performance in high-cycle operations.
- Vertical cylinder mounting in pick-and-place robots
- Pneumatic clamping fixture installations
- Conveyor line pusher mechanisms
- Packaging machine end-effector supports
- Automated assembly station tooling mounts
Installation note:
Apply 5-7Nm torque during bolt tightening. Use thread-locking compound
if exposed to continuous vibration above 15Hz. Align groove marks with
cylinder body reference lines for optimal force distribution.
- Works best with AirTAC SC series cylinders (SC32 to SC100)
- Requires minimum 5mm thick mounting surface
- For horizontal installations, add secondary support at 3/4L position
| Property | Property Value |
|---|---|
| sku | F-SC200CA |
