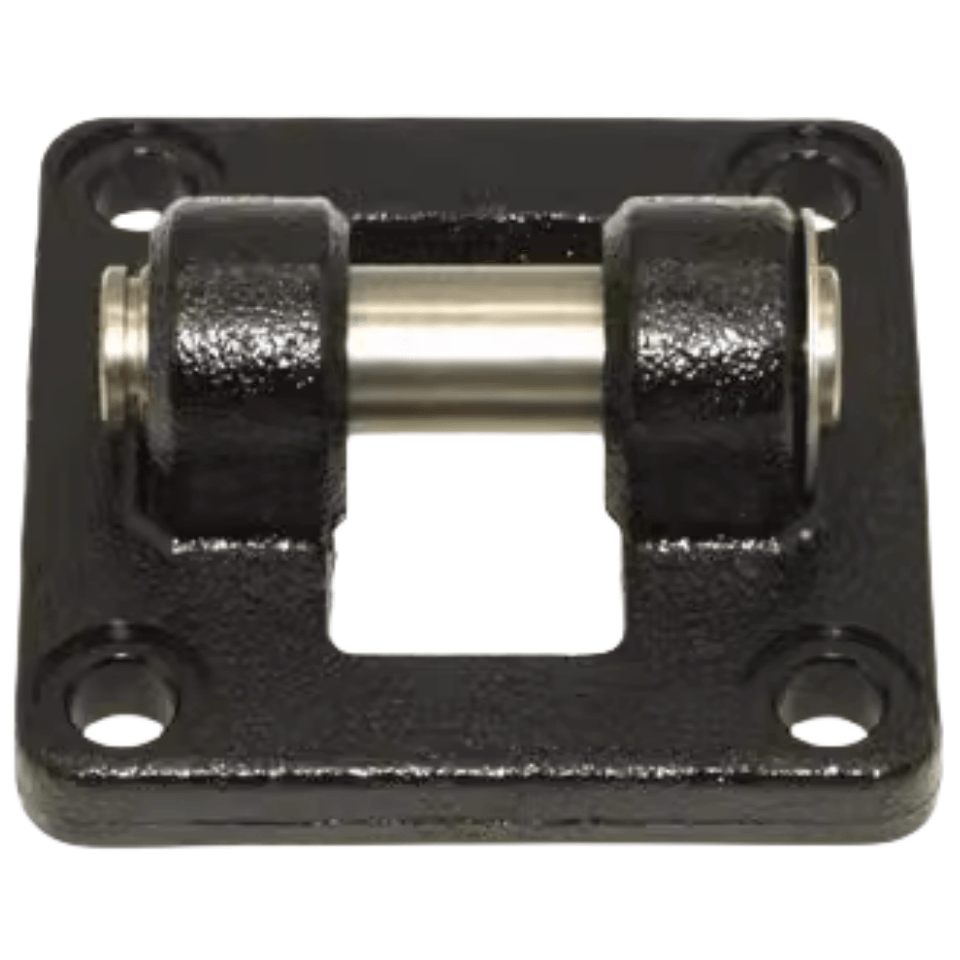

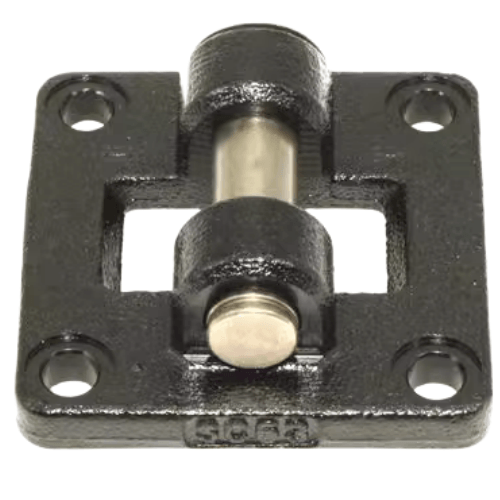

Airtac F-SC-CB Double Ear Fixed Bracket Complete Assembly Package F-SC100CB
AirTAC F-SC-CB Double Ear Mounting Bracket Kit F-SC100CB Technical Details
- Model: F-SC100CB (Complete Bracket Kit)
- Type: Universal double-ear mounting bracket with pre-assembled hardware
- Material: Aluminum alloy ADC12 with precision casting
- Surface treatment: Anodized (natural silver) + sandblasting
- Compatible cylinder series: SC/SU/SI 32-100mm bore sizes
- Mounting hole spacing: 100mm ±0.2mm (center-to-center)
- Bolt specifications: M6×12mm stainless steel (4 pcs included)
- Load capacity: Static 980N, Dynamic 490N (axial direction)
- Operating temperature: -20℃ to 80℃
- Vibration resistance: ≤50m/s² (10-2000Hz frequency range)
- Weight: 385g ±5g (complete kit)
- Dimensions: 128mm(L) × 48mm(W) × 25mm(H)
- Kit contents: Bracket pair, M6 bolts (4), anti-loosening washers (4), installation manual
Heavy-duty mounting solution designed for stabilizing pneumatic cylinders in high-vibration environments. Features symmetrical reinforcement ribs and precision-machined alignment grooves (0.01mm tolerance) for perfect cylinder parallelism. The zinc-nickel plated fasteners provide corrosion resistance in humid conditions (85% RH max).
- Robotic welding arm cylinder fixation
- Packaging machine vertical lift mechanisms
- CNC machine tool clamping systems
- Automated assembly line transfer units
- Food processing conveyor tensioning devices
Installation protocol:
Use 0.8-1.2Nm torque for bolt tightening. Apply thread-locking compound
(not included) for impact-prone applications. Always verify cylinder
alignment with dial indicator (≤0.05mm runout recommended).
| Property | Property Value |
|---|---|
| sku | F-SC100CB |
