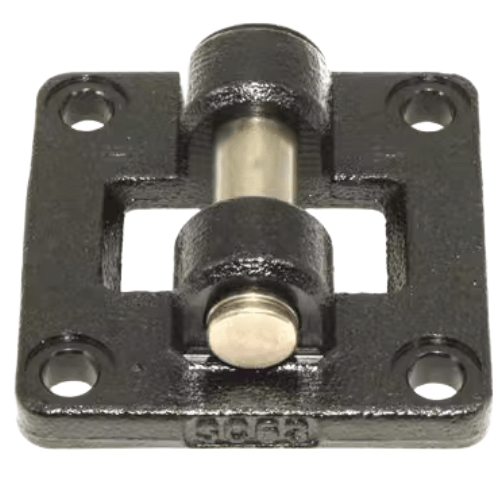

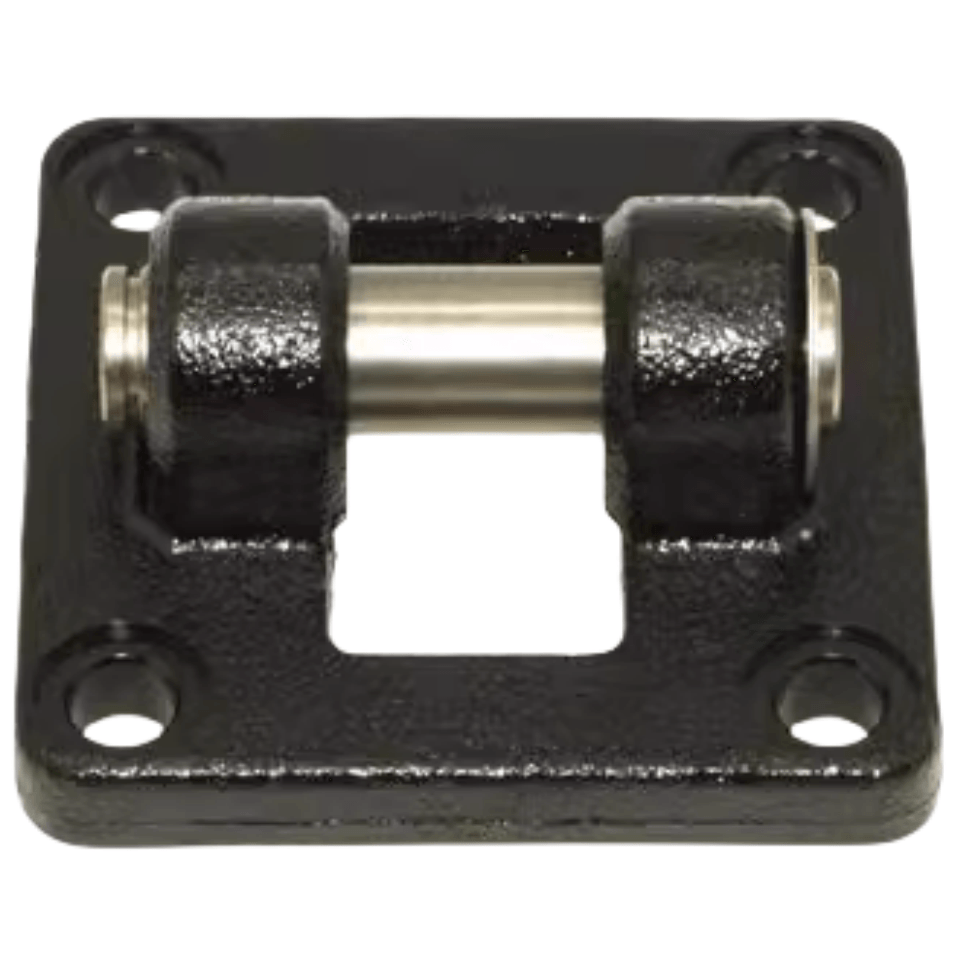

Airtac F-SC-CB Double Ear Fixed Bracket Complete Assembly Package F-SC50CB
AirTAC F-SC-CB Double Ear Fixation Bracket Kit F-SC50CB Technical Details
- Model: F-SC50CB
- Type: Standard cylinder mounting bracket kit
- Material: Aluminum alloy (6063-T5)
- Compatible cylinder series: SC50
- Mounting hole spacing: 25mm ±0.2mm
- Screw specification: M6×12 hex socket screws (included)
- Surface treatment: Black anodized
- Static load capacity: ≤1,200N
- Dynamic load capacity: ≤800N
- Temperature range: -20℃ to 80℃
- Corrosion resistance: 96hr salt spray test passed
- Weight: 0.45kg ±3%
- Dimensions: 50mm(L) × 50mm(W) × 30mm(H)
- Package contents: Bracket pair, mounting screws, anti-vibration pads
Precision-engineered bilateral fixation solution for SC series cylinders, featuring symmetrical force distribution and vibration-damping design. The T-slot structure allows 5° adjustable mounting angle with integrated wear-resistant nylon pads (0.5mm thickness) for shock absorption. Compatible with ISO 15552 cylinder standards.
- Pneumatic cylinder mounting in automated assembly lines
- Robotic arm joint stabilization
- Material handling equipment installations
- Packaging machinery linear motion systems
- Precision alignment in semiconductor manufacturing tools
Installation guidance:
Use torque-controlled wrench (recommended 5.5N·m ±10%) for even pressure distribution.
Apply thread-locking compound (not included) in high-vibration environments.
Maintain 0.1-0.3mm clearance between bracket and cylinder end caps for thermal expansion.
