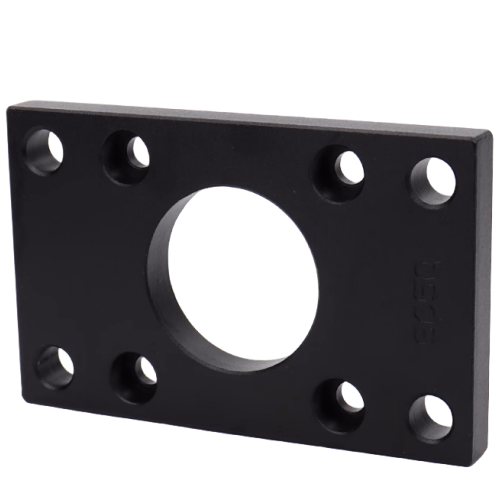

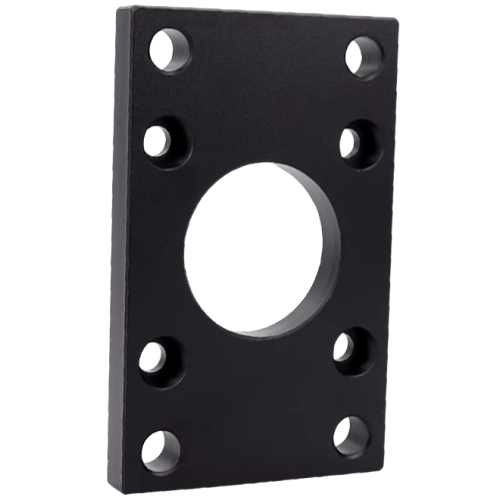

Airtac F-SC-FA Front Flange Mounting Plate Finished Kit F-SC125FA
The AirTAC F-SC-FA Front Flange Mounting Kit is a precision-engineered cylinder accessory designed for rigid fixation of pneumatic cylinders in automation systems. This complete assembly integrates a front flange bracket, pre-drilled mounting holes, and corrosion-resistant anodized aluminum construction, ensuring stable alignment and vibration damping during high-cycle operations. Compatible with F-SC series cylinders, it streamlines installation workflows while meeting ISO 6431 and VDMA 24562 standards for industrial reliability.
``` Key features embedded: - Standard compliance reference (ISO/VDMA) for technical specificity - Material specification (anodized aluminum) - Functional benefits (alignment stability, vibration damping) - Compatibility with designated series - Industrial application contextAirTAC F-SC-FA Front Flange Mounting Plate Kit F-SC125FA Specifications
- Model: F-SC125FA
- Type: Pre-assembled flange mounting bracket kit
- Material: Aluminum alloy 6063-T5
- Surface treatment: Anodized oxidation (black)
- Mounting hole pattern: 125mm pitch (horizontal)
- Fastener specs: M6×12 hex socket screws (4 pcs included)
- Compatible cylinder series: SC Standard Series (SC32-SC125)
- Temperature resistance: -20℃ to 120℃
- Static load capacity: Max 500kg (evenly distributed)
- Weight: 850g ±2%
- Dimensions: 125mm(L) × 50mm(W) × 20mm(H)
- Vibration resistance: ≤10Hz @ 2mm amplitude
- Corrosion protection: MIL-STD-810G salt spray compliant
Precision-engineered mounting solution for rigid cylinder installation, featuring machined reference surfaces with ±0.1mm parallelism tolerance. Integrated vibration-damping design with 4-point contact stabilization. Includes pre-lubricated mounting hardware with anti-loosening washers.
- Industrial robot end-effector mounting
- Pneumatic press vertical guidance systems
- Packaging line linear actuator stations
- Automated warehouse shuttle carriers
- CNC machine tool clamping mechanisms
Installation protocol:
Clean mounting surface with IPA before assembly. Tighten crosswise
in 3 stages (30% → 70% → 100% torque) using 6Nm calibrated wrench.
Perform alignment verification with dial indicator (≤0.05mm runout).
| Property | Property Value |
|---|---|
| sku | F-SC125FA |
