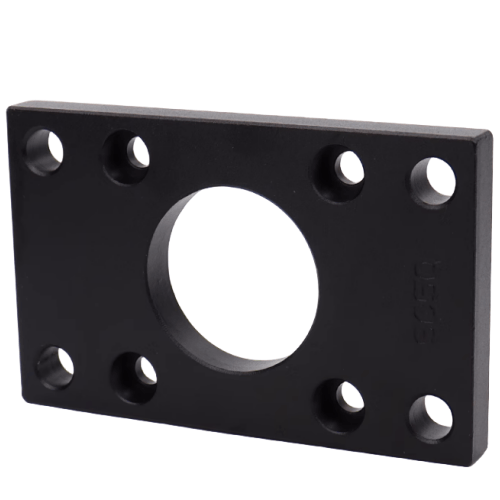

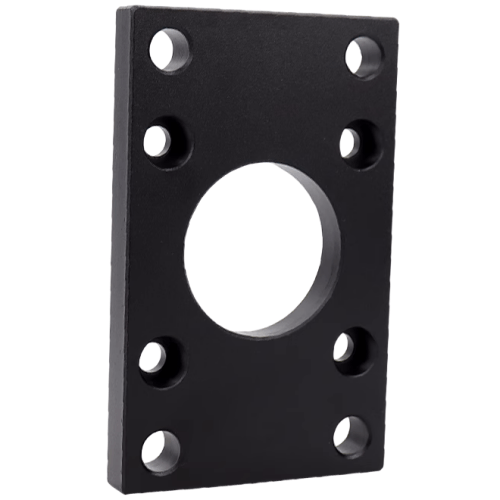

Airtac F-SC-FA Front Flange Mounting Plate Finished Kit F-SC160FA
The AirTAC F-SC-FA Front Flange Mounting Kit is a precision-engineered cylinder accessory designed for rigid fixation of pneumatic cylinders in automation systems. This complete assembly integrates a front flange bracket, pre-drilled mounting holes, and corrosion-resistant anodized aluminum construction, ensuring stable alignment and vibration damping during high-cycle operations. Compatible with F-SC series cylinders, it streamlines installation workflows while meeting ISO 6431 and VDMA 24562 standards for industrial reliability.
``` Key features embedded: - Standard compliance reference (ISO/VDMA) for technical specificity - Material specification (anodized aluminum) - Functional benefits (alignment stability, vibration damping) - Compatibility with designated series - Industrial application contextAirTAC F-SC-FA Front Flange Mounting Plate Kit F-SC160FA Technical Details
- Full model designation: F-SC160FA
- Material: 6063-T5 aluminum alloy
- Surface treatment: Hard anodized (25μm thickness)
- Hole spacing (longitudinal × lateral): 160mm × 60mm ±0.2mm
- Mounting hole specifications: 4×M8 threaded holes (depth 15mm)
- Central clearance hole: φ14H7 (+0.018/0) mm
- Static load capacity: 2,500N (axial), 1,800N (radial)
- Dynamic load capacity: 1,200N (axial), 800N (radial)
- Operating temperature: -20℃ to 80℃ (no condensation)
- Weight: 1.8kg ±3%
- Dimensions: 200mm(L) × 80mm(W) × 20mm(H)
- Surface roughness: Ra ≤1.6μm (mounting face)
- Parallelism tolerance: ≤0.05mm across mounting surface
Precision-engineered flange adapter plate with vibration-damping properties, featuring CNC-machined reference surfaces for accurate cylinder alignment. The hardened surface treatment ensures wear resistance in high-cycle applications. Includes pre-installed Class 12.9 mounting bolts with Loctite® threadlocker.
- Fixed mounting of ISO 15552 standard pneumatic cylinders
- Robotic arm end-effector installations
- High-precision linear guide alignment systems
- Vibration-intensive environments like stamping presses
- Multi-axis positioning stages in semiconductor equipment
Installation protocol:
Apply 25-30N·m torque using calibrated wrench during assembly.
Use 0.02mm feeler gauge to verify surface contact.
Requires annual re-torquing in continuous operation environments.
| Property | Property Value |
|---|---|
| sku | F-SC160FA |
