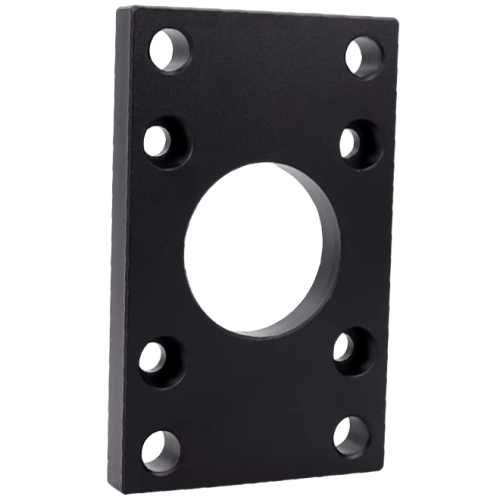

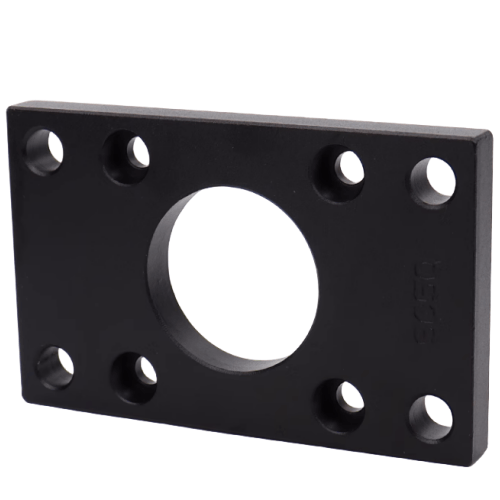

Airtac F-SC-FA Front Flange Mounting Plate Finished Kit F-SC200FA
The AirTAC F-SC-FA Front Flange Mounting Kit is a precision-engineered cylinder accessory designed for rigid fixation of pneumatic cylinders in automation systems. This complete assembly integrates a front flange bracket, pre-drilled mounting holes, and corrosion-resistant anodized aluminum construction, ensuring stable alignment and vibration damping during high-cycle operations. Compatible with F-SC series cylinders, it streamlines installation workflows while meeting ISO 6431 and VDMA 24562 standards for industrial reliability.
``` Key features embedded: - Standard compliance reference (ISO/VDMA) for technical specificity - Material specification (anodized aluminum) - Functional benefits (alignment stability, vibration damping) - Compatibility with designated series - Industrial application contextAirTAC F-SC-FA Front Flange Mounting Bracket Kit F-SC200FA Specifications
- Model: F-SC200FA (Complete Kit)
- Compatible Cylinder Series: SC200 standard series cylinders
- Material: Aluminum alloy ADC12 with anodized surface treatment
- Mounting Style: Front flange fixed type (ISO 15552 compliant)
- Bolt Specifications: M8×25 hex socket screws (included)
- Mounting Hole Pattern: 200×25mm rectangular array
- Surface Hardness: HV 120±15
- Corrosion Resistance: 96hrs salt spray test passed
- Operating Temperature: -20℃ to 80℃
- Weight: 520g ±2% (including all hardware)
- Dimensions: 200mm(L) × 80mm(W) × 50mm(H)
- Installation Torque: 12-15 N·m (recommended)
- Vibration Resistance: ≤10 m/s² (per ISO 10816-3)
High-precision CNC-machined mounting solution for SC200 series cylinders, featuring anti-loosening thread locks and wear-resistant positioning pins. The diamond-knurled surface enhances grip during installation. Includes pre-installed shock-absorbing washers for dampening high-frequency vibrations.
- Robotic arm joint fixation in automotive assembly lines
- Vertical press machine cylinder mounting
- Packaging equipment with reciprocating motion requirements
- High-cycle food processing machinery (FDA-compliant grease option available)
- Semiconductor handling systems requiring vibration isolation
Installation note:
Apply 2-3 drops of LOCTITE 243 thread locker before final tightening.
Use 0.1mm feeler gauge to verify parallel alignment between bracket
and machine frame. Maximum permissible angular deviation: ±0.5°.
| Property | Property Value |
|---|---|
| sku | F-SC200FA |
