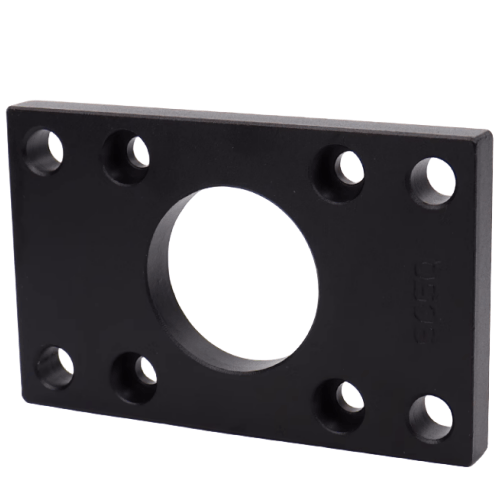

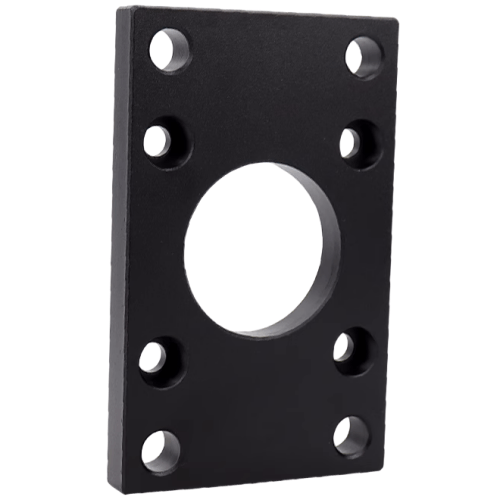

Airtac F-SC-FA Front Flange Mounting Plate Finished Kit F-SC250FA
The AirTAC F-SC-FA Front Flange Mounting Kit is a precision-engineered cylinder accessory designed for rigid fixation of pneumatic cylinders in automation systems. This complete assembly integrates a front flange bracket, pre-drilled mounting holes, and corrosion-resistant anodized aluminum construction, ensuring stable alignment and vibration damping during high-cycle operations. Compatible with F-SC series cylinders, it streamlines installation workflows while meeting ISO 6431 and VDMA 24562 standards for industrial reliability.
``` Key features embedded: - Standard compliance reference (ISO/VDMA) for technical specificity - Material specification (anodized aluminum) - Functional benefits (alignment stability, vibration damping) - Compatibility with designated series - Industrial application contextAirTAC F-SC-FA Front Flange Mounting Plate Kit F-SC250FA Technical Details
- Model: F-SC250FA (Complete Kit)
- Type: Pre-assembled front flange mounting system
- Material: 6063-T5 aluminum alloy
- Surface treatment: Hard anodized (25-30μm thickness)
- Mounting hole pattern: 8×M12 threaded holes (ISO 261)
- Center bore diameter: Ø250±0.05mm
- Applicable cylinder bore: 250mm series
- Bolt torque specification: 78-98 N·m (M12 bolts)
- Flatness tolerance: ≤0.1mm/m²
- Weight: 12.5kg (complete assembly)
- Dimensions: 280mm (L) × 280mm (W) × 25mm (H)
- Temperature range: -20℃ to 150℃ (continuous operation)
- Surface hardness: HV 400-450
- Corrosion resistance: 500hr neutral salt spray test
Heavy-duty flange mounting solution designed for high-moment applications in linear motion systems. Features precision-machined alignment surfaces and through-hardened mounting threads for repeated assembly/disassembly. Includes pre-installed M12×35 class 12.9 hex socket head cap bolts with anti-vibration washers.
- Pneumatic cylinder mounting in stamping press automation
- Robotic arm base plate fixation for palletizing systems
- Linear guide end support in CNC machine tools
- Vibration isolation platforms for hydraulic power units
- Custom fixture base plates in automotive welding lines
Mounting protocol:
Clean contact surfaces with isopropyl alcohol before installation.
Apply medium-strength thread locker (LOCTITE 243 recommended)
and tighten bolts in cross pattern sequence. Verify perpendicularity
with 0.02mm/m precision level after installation.
