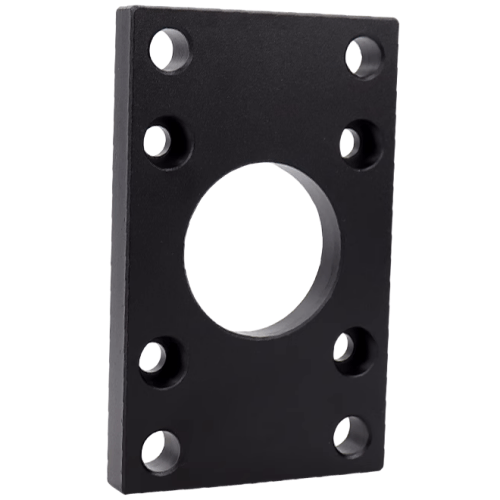

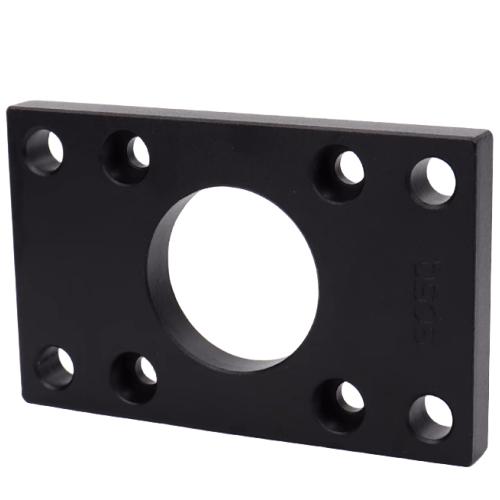

Airtac F-SC-FA Front Flange Mounting Plate Finished Kit F-SC40FA
The AirTAC F-SC-FA Front Flange Mounting Kit is a precision-engineered cylinder accessory designed for rigid fixation of pneumatic cylinders in automation systems. This complete assembly integrates a front flange bracket, pre-drilled mounting holes, and corrosion-resistant anodized aluminum construction, ensuring stable alignment and vibration damping during high-cycle operations. Compatible with F-SC series cylinders, it streamlines installation workflows while meeting ISO 6431 and VDMA 24562 standards for industrial reliability.
``` Key features embedded: - Standard compliance reference (ISO/VDMA) for technical specificity - Material specification (anodized aluminum) - Functional benefits (alignment stability, vibration damping) - Compatibility with designated series - Industrial application contextAirTAC F-SC-FA Front Flange Mounting Plate Kit F-SC40FA Technical Details
- Model Series: F-SC-FA (Standard Cylinder Accessory Series)
- Specific Model: F-SC40FA
- Compatible Cylinder Bore: ø40mm series
- Material: Aluminum alloy 6063-T5
- Surface Treatment: Black anodized (8-12μm thickness)
- Mounting Pattern: ISO 15552 (formerly ISO 6431) standard
- Mounting Hole Quantity: 4 through-holes
- Hole Specifications: M6 threaded (depth 10mm)
- Load Capacity: Max 300N static load
- Weight: 0.82kg ±3%
- Dimensions: 80mm(L) × 40mm(W) × 25mm(H)
- Thermal Range: -20°C to 120°C (continuous operation)
- Vibration Resistance: ≤10Hz frequency, 2mm amplitude
- Corrosion Resistance: 96hr salt spray test compliant
- Parallelism Tolerance: ≤0.05mm mounting surface
Precision-engineered front flange kit for rigid cylinder mounting in space-constrained environments. Features anti-loosening threaded inserts and alignment notches for quick installation. The anodized surface provides enhanced wear resistance against mechanical abrasion and coolant splashes.
- Fixed mounting of ISO-standard pneumatic cylinders in pick-and-place systems
- Linear actuator stabilization in CNC machine tool changers
- Vibration dampening platform for packaging machinery
- Modular assembly in semiconductor handling equipment
- Retrofit upgrades for legacy pneumatic press systems
Installation protocol:
Apply medium-strength thread locker (LOCTITE 243 recommended) on M6 screws.
Tighten diagonally in 3 stages (30% → 70% → 100% torque) to 8.8Nm maximum.
Verify perpendicularity with 0.02mm feeler gauge post-installation.
