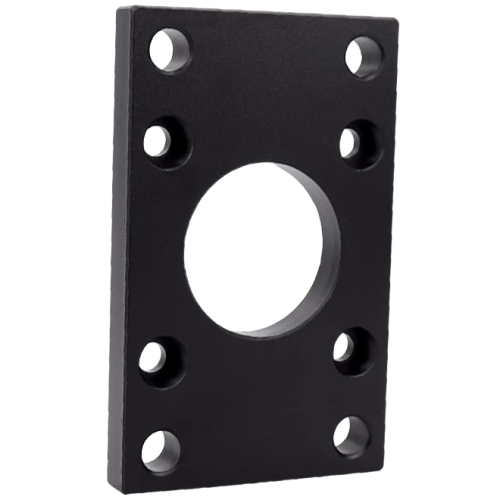

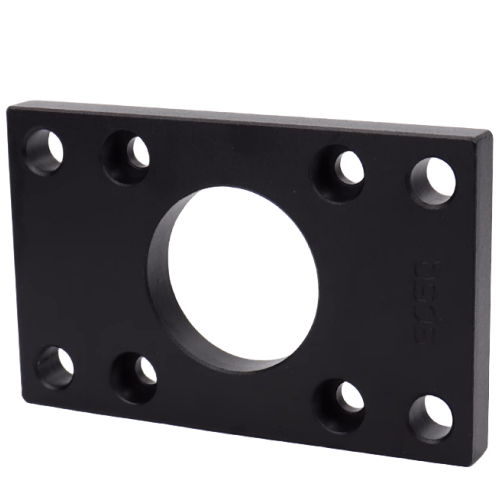

Airtac F-SC-FA Front Flange Mounting Plate Finished Kit F-SC50FA
The AirTAC F-SC-FA Front Flange Mounting Kit is a precision-engineered cylinder accessory designed for rigid fixation of pneumatic cylinders in automation systems. This complete assembly integrates a front flange bracket, pre-drilled mounting holes, and corrosion-resistant anodized aluminum construction, ensuring stable alignment and vibration damping during high-cycle operations. Compatible with F-SC series cylinders, it streamlines installation workflows while meeting ISO 6431 and VDMA 24562 standards for industrial reliability.
``` Key features embedded: - Standard compliance reference (ISO/VDMA) for technical specificity - Material specification (anodized aluminum) - Functional benefits (alignment stability, vibration damping) - Compatibility with designated series - Industrial application contextAirTAC F-SC-FA Series Front Flange Bracket Kit F-SC50FA Technical Details
- Model: F-SC50FA (Complete Bracket Package)
- Compatible Cylinder Series: SC Standard Cylinder Series
- Material: Aluminum Alloy ADC12 (Anodized Surface)
- Surface Treatment: Natural Anodization (Silver)
- Mounting Hole Pattern: 4x M6 Threaded Holes
- Bolt Circle Diameter: 72mm ±0.2mm
- Center Bore Diameter: 50.5mm ±0.1mm (For SC50 Cylinder)
- Load Capacity: 850N Dynamic / 1,200N Static
- Fastener Type: Includes Class 8.8 M8x25 Hex Bolts (Qty 4)
- Temperature Range: -20°C to 120°C
- Vibration Resistance: ≤50m/s² (10-150Hz)
- Protection Rating: IP54 (As Assembled)
- Weight: 0.68kg ±2% (Including Hardware)
- Dimensions: 80mm(W) × 80mm(D) × 12mm(H)
Precision-machined mounting solution for SC series cylinders, featuring CNC-milled alignment grooves and dual-plane mounting surfaces. The anodized finish provides corrosion resistance in humid environments. Includes pre-installed steel thread inserts for repeated disassembly capability. Compatible with ISO 15552 mounting standards.
- Multi-axis pneumatic actuator configurations
- Vertical load applications in material handling systems
- Precision alignment in semiconductor wafer handling
- Vibration-prone environments like CNC machine tool changers
- Modular assembly systems requiring quick cylinder replacement
Installation protocol:
Apply 20-25Nm torque to mounting bolts using cross-pattern tightening sequence.
Use included shim washers when mounting on uneven surfaces (>0.2mm deviation).
Lubricate cylinder barrel before insertion (Molykote EM-30L recommended).
| Property | Property Value |
|---|---|
| sku | F-SC50FA |
