Airtac F-SC-FA Front Flange Mounting Plate Finished Kit F-SC63FA
The AirTAC F-SC-FA Front Flange Mounting Kit is a precision-engineered cylinder accessory designed for rigid fixation of pneumatic cylinders in automation systems. This complete assembly integrates a front flange bracket, pre-drilled mounting holes, and corrosion-resistant anodized aluminum construction, ensuring stable alignment and vibration damping during high-cycle operations. Compatible with F-SC series cylinders, it streamlines installation workflows while meeting ISO 6431 and VDMA 24562 standards for industrial reliability.
``` Key features embedded: - Standard compliance reference (ISO/VDMA) for technical specificity - Material specification (anodized aluminum) - Functional benefits (alignment stability, vibration damping) - Compatibility with designated series - Industrial application contextAirTAC F-SC-FA Front Flange Mounting Plate Kit F-SC63FA Technical Details

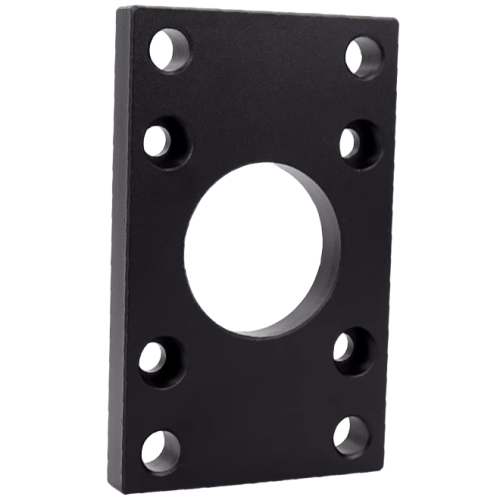

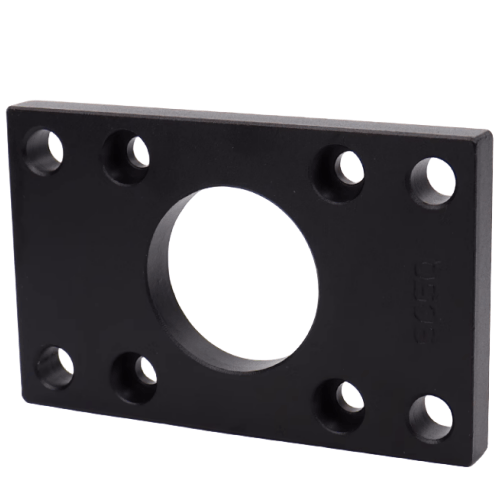

- Model: F-SC63FA
- Type: Front flange mounting plate complete kit
- Material: Aluminum alloy ADC12 (hard anodized surface)
- Bore size compatibility: Ø63mm cylinders
- Mounting hole pattern: ISO 15552 standard (8-hole rectangular pattern)
- Hole specifications: 4×M8 threaded holes (depth 12mm) + 4×Ø8.5mm through holes
- Hole spacing: 100mm longitudinal × 60mm lateral (center-to-center)
- Compatible cylinder series: SC/SU/SI 63mm bore models
- Surface roughness: Ra 1.6μm on mounting face
- Weight: 1.85kg ±3%
- Dimensions: 132mm(L) × 82mm(W) × 24mm(H)
- Temperature range: -20℃ to 80℃ (continuous operation)
- Surface treatment: Black anodized (Alodine 1200S process)
- Included components: Mounting plate, 4×M8×25 hex socket screws, 4×spring washers, 4×flat washers
Heavy-duty flange mounting solution designed for precise alignment and vibration-resistant cylinder installation. Features dual-purpose mounting holes (through holes for bolt pass & threaded holes for direct fastening) with CNC-machined reference surfaces (flatness ≤0.05mm). Includes all necessary Class 8.8 fasteners for immediate installation.
- Vertical cylinder mounting in robotic welding stations
- Multi-axis pneumatic actuator configurations
- High-cycle stamping press tooling setups
- Custom automation rigs requiring ISO-standard interfaces
- Vibration-intensive environments like foundry equipment
- Clean mounting surfaces with isopropyl alcohol (≥99% purity)
- Apply medium-strength thread locker (Loctite 243 recommended) to screw threads
- Torque M8 screws to 22-25N·m using crisscross tightening sequence
- Verify perpendicularity with dial indicator (max 0.1mm deviation across 100mm)
- Re-torque after 50 operating cycles for critical applications
Critical note:
Use only with specified cylinder series - improper pairing may cause stress fractures.
For suspended loads >50kg, add secondary safety brackets.
| Property | Property Value |
|---|---|
| sku | F-SC63FA |
