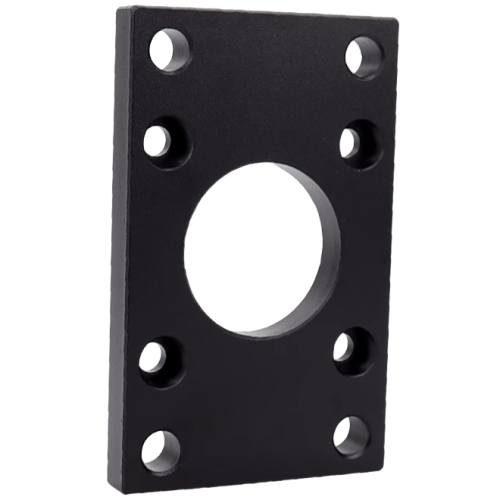

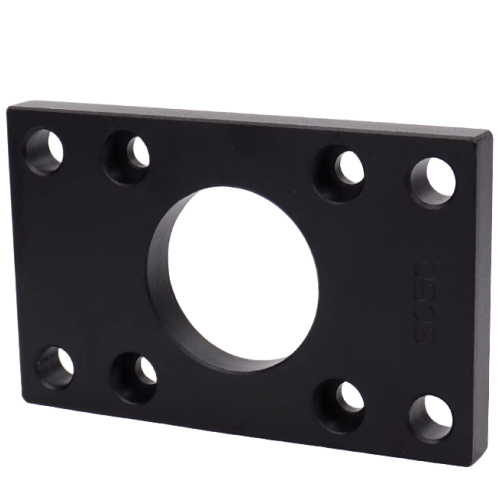

Airtac F-SC-FA Front Flange Mounting Plate Finished Kit F-SC80FA
The AirTAC F-SC-FA Front Flange Mounting Kit is a precision-engineered cylinder accessory designed for rigid fixation of pneumatic cylinders in automation systems. This complete assembly integrates a front flange bracket, pre-drilled mounting holes, and corrosion-resistant anodized aluminum construction, ensuring stable alignment and vibration damping during high-cycle operations. Compatible with F-SC series cylinders, it streamlines installation workflows while meeting ISO 6431 and VDMA 24562 standards for industrial reliability.
``` Key features embedded: - Standard compliance reference (ISO/VDMA) for technical specificity - Material specification (anodized aluminum) - Functional benefits (alignment stability, vibration damping) - Compatibility with designated series - Industrial application contextAirTAC F-SC-FA Front Flange Mounting Plate Kit (F-SC80FA) Technical Details
- Full Model: F-SC-FA Series (F-SC80FA)
- Material: Aluminum Alloy 6063-T5 with hard anodized finish
- Compatible Cylinder: SC Series Standard Bore Cylinder Ø80mm
- Mounting Pattern: ISO 15552 (formerly ISO 6431) standard
- Mounting Holes: 4×M10 threaded holes (8.8 grade steel inserts)
- Hole Spacing: 125mm×125mm square pattern (±0.1mm tolerance)
- Surface Hardness: ≥HV400 (anodized layer thickness 20-25μm)
- Weight: 1.25kg (with all included hardware)
- Dimensions: 150mm(L) × 150mm(W) × 25mm(H)
- Temperature Range: -20℃ to +80℃ (continuous operation)
- Corrosion Resistance: 96hr salt spray test passed (ASTM B117)
- Included Components: Mounting plate, 4×M10×25 flange screws, 4×spring washers, 4×flat washers
Heavy-duty front flange mounting solution designed for SC series pneumatic cylinders. Features precision-machined locating surfaces (Ra1.6 finish) for perfect cylinder alignment. The counterbored screw holes prevent bolt protrusion while maintaining ISO-standard mounting dimensions. Anodized coating provides superior wear resistance in harsh industrial environments.
- Primary Use: Fixed mounting of double-acting cylinders in linear motion systems
- Ideal For:
- Automated assembly line clamping fixtures
- Plastic injection molding machine ejectors
- CNC tool changer positioning mechanisms
- Material handling conveyor stoppers
- Load Capacity: Supports up to 2,500N dynamic thrust (at 0.7MPa)
Installation Protocol:
Apply thread-locking compound (Loctite 243 recommended) on screws.
Tighten diagonally in 3 stages (30%→70%→100% torque) to 45N·m ±5%.
Verify plate flatness with 0.05mm feeler gauge before cylinder attachment.
- Direct pairing: SC80×25 ~ SC80×500 stroke cylinders
- Adapter Options: AR-25F series for non-standard mounts
- Not compatible with: SDA/SDB compact cylinder series
| Property | Property Value |
|---|---|
| sku | F-SC80FA |
