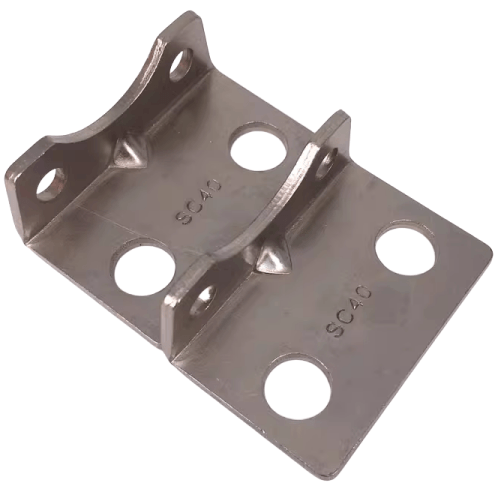

Airtac F-SC-LB Axial Fixing Bracket Finished Product Package F-SC100LB
Brand: AirTAC
Series: F-SC-LB Axial Fixing Mount Complete Kit
The F-SC-LB series represents a precision-engineered axial fixing mount assembly designed for secure cylinder installation and alignment stabilization. This complete mounting kit incorporates hardened mounting brackets and pre-assembled fastening components, ensuring optimal axial load distribution and vibration dampening in pneumatic systems. Features corrosion-resistant treated surfaces and standardized interface dimensions for seamless integration with AirTAC ISO-compliant cylinder series. Ideal for applications requiring precise linear motion control and enhanced structural rigidity in industrial automation setups.
AirTAC F-SC-LB Axial Fixing Bracket Kit F-SC100LB Technical Details
- Model: F-SC100LB (Complete Assembly Kit)
- Series: F-SC-LB Heavy Duty Linear Guide Series
- Material: 6063-T5 Aluminum Alloy (Anodized Surface)
- Load Capacity: 1,200N Static / 800N Dynamic
- Mounting Hole Pattern: 4×M8×1.25 Threaded Holes (10mm Depth)
- Rail Compatibility: HGH/EGH/MGN Series 15/20/25mm Width
- Surface Hardness: HV 150-160 (Hard Anodized Layer 25-30μm)
- Flatness Tolerance: ≤0.02mm/100mm
- Weight: 2.35kg ±2% (Complete Assembly)
- Dimensions: 198mm(L) × 48mm(W) × 34mm(H)
- Operating Temperature: -40℃ to 120℃ (Continuous)
- Surface Protection: MIL-A-8625 Type III Class 2 Anodization

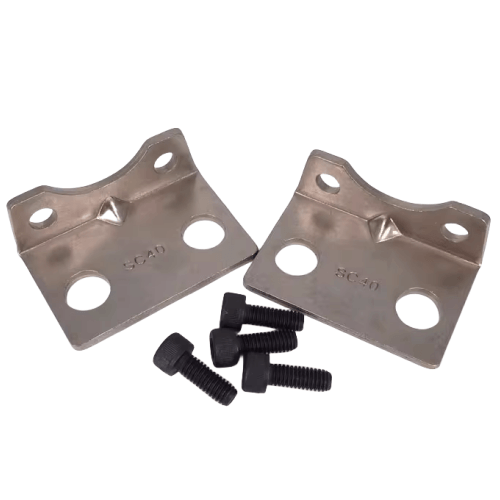

- Included Components: Bracket Body, M8×25 Stainless Cap Screws (4pcs), Spring Washers (4pcs), Alignment Pins (2pcs)
Precision-machined axial retention system featuring dual-phase thermal stabilization treatment for maintaining dimensional stability under high cyclic loads. The asymmetric rib design enhances torsional rigidity while reducing mass, with integrated oil grooves for lubrication maintenance. Compatible with ISO 10285 standard linear motion components.
- CNC gantry axis reinforcement in machining centers
- High-speed pick-and-place robot base frame alignment
- Semiconductor wafer handling equipment guide rail fixation
- Automated warehouse shuttle car vertical axis support
- 3D printing gantry systems requiring thermal stability
Installation Protocol:
Apply 6-8Nm torque using calibrated torque wrench in cross pattern sequence.
Use 0.02mm feeler gauge to verify rail-bracket contact uniformity before final tightening.
Requires Loctite 243 threadlocker on fasteners exposed to vibration.
| Property | Property Value |
|---|---|
| sku | F-SC100LB |
