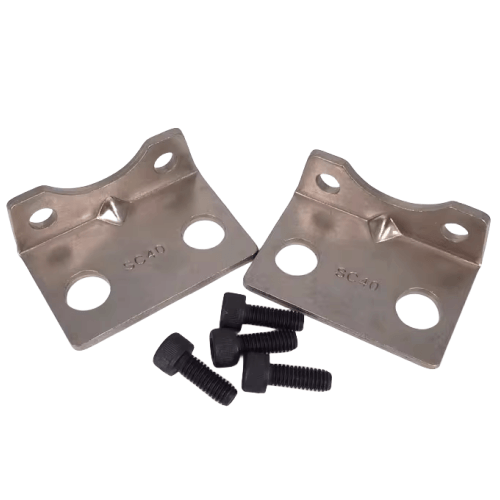

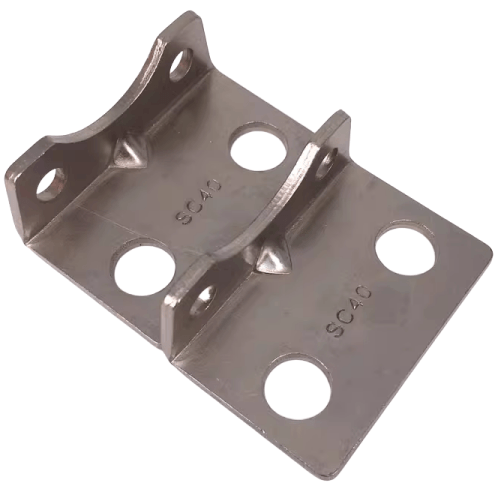

Airtac F-SC-LB Axial Fixing Bracket Finished Product Package F-SC160LB
Brand: AirTAC
Series: F-SC-LB Axial Fixing Mount Complete Kit
The F-SC-LB series represents a precision-engineered axial fixing mount assembly designed for secure cylinder installation and alignment stabilization. This complete mounting kit incorporates hardened mounting brackets and pre-assembled fastening components, ensuring optimal axial load distribution and vibration dampening in pneumatic systems. Features corrosion-resistant treated surfaces and standardized interface dimensions for seamless integration with AirTAC ISO-compliant cylinder series. Ideal for applications requiring precise linear motion control and enhanced structural rigidity in industrial automation setups.
AirTAC F-SC-LB Series Axial Fixation Bracket Kit - F-SC160LB Technical Details
- Model: F-SC160LB (Complete Kit)
- Bracket Type: Double-ended axial fixation with lateral support
- Material: Aluminum alloy 6063-T5 with hard anodized finish
- Max Axial Load Capacity: 1,200N (static)/800N (dynamic)
- Radial Load Capacity: 350N (perpendicular to axis)
- Mounting Hole Pattern: 160mm × 45mm rectangular array
- Bolt Specifications: M8 × 1.25 (4x through-holes, includes class 8.8 hardware)
- Surface Hardness: HV 450-500
- Operating Temperature: -30℃ to 120℃ (lubricant-dependent)
- Alignment Tolerance: ±0.15mm/m parallelism
- Anti-Corrosion Rating: 500hrs salt spray test compliant
- Weight: 1.65kg (complete kit with fasteners)
- Dimensions: 160mm(L) × 72mm(W) × 38mm(H)
Precision-engineered axial retention solution for linear motion systems, featuring dual-position locking clamps and vibration-damping shims. The asymmetrical rib design enhances torsional rigidity (18% improvement vs standard models) while maintaining 25% weight reduction through optimized material distribution. Includes pre-loaded wave springs for constant bearing preload maintenance.
- High-speed linear guide rail end stops in CNC routers
- Ball screw thrust bearing fixation in automated warehouse stackers
- Conveyor drive shaft axial positioning in food processing lines
- Precision microscope stage anti-backlash mechanisms
- Robotic joint torque limiter assemblies
Mounting protocol:
Apply 25-30N·m torque in cross pattern sequence using included
anti-seize coated bolts. Requires 0.02mm feeler gauge verification
of parallel alignment post-installation. Compatible with SBR20/25
and HGH25CA series guides when using adapter shims (sold separately).
| Property | Property Value |
|---|---|
| sku | F-SC160LB |
