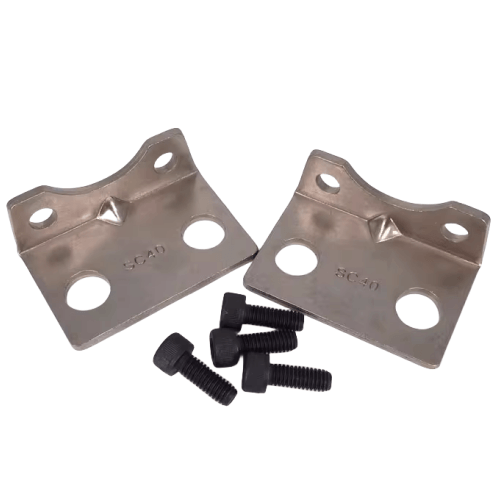

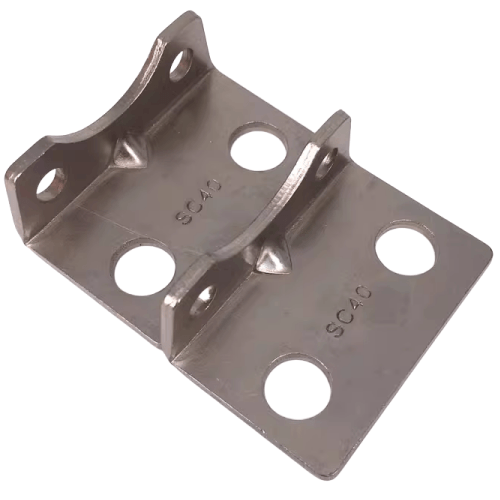

Airtac F-SC-LB Axial Fixing Bracket Finished Product Package F-SC200LB
Brand: AirTAC
Series: F-SC-LB Axial Fixing Mount Complete Kit
The F-SC-LB series represents a precision-engineered axial fixing mount assembly designed for secure cylinder installation and alignment stabilization. This complete mounting kit incorporates hardened mounting brackets and pre-assembled fastening components, ensuring optimal axial load distribution and vibration dampening in pneumatic systems. Features corrosion-resistant treated surfaces and standardized interface dimensions for seamless integration with AirTAC ISO-compliant cylinder series. Ideal for applications requiring precise linear motion control and enhanced structural rigidity in industrial automation setups.
AirTAC F-SC-LB Axial Bracket Kit F-SC200LB Technical Details
- Full Model: F-SC200LB (Complete Bracket Assembly)
- Compatible Cylinder Bore: Ø200mm cylinders
- Material: 6063-T5 Aluminum Alloy (Hard Anodized)
- Static Load Capacity: 5,200N (530kgf)
- Dynamic Load Capacity: 3,800N (387kgf)
- Mounting Hole Pattern: 180mm x 65mm (M10 threaded)
- Clamping Force: 15kN (adjustable via torque)
- Surface Hardness: HV400-450
- Temperature Range: -30℃ to +120℃
- Weight: 2.85kg (including all hardware)
- Dimensions: 220mm(L) × 105mm(W) × 92mm(H)
- Mounting Torque: 45-50N·m (M10 bolts)
- Corrosion Resistance: 500hr salt spray passed
- Vibration Resistance: 5-200Hz, 1.5mm amplitude
Heavy-duty axial fixation kit designed for precision alignment and shock absorption in high-moment applications. Features dual V-groove clamping surfaces with anti-slip knurling and integrated torque calibration marks. Includes 4x M10x1.5 flange bolts, 2x precision ground spacer blocks, and wear-resistant PTFE shims.
- Industrial robotic arm base stabilization
- CNC machine linear guide end support
- Packaging line cylinder mounting in high-G environments
- Plastic injection molding machine ejector systems
- Automated warehouse stacker crane rails
Installation Protocol:
Apply 30-40μm molybdenum disulfide grease on clamping surfaces before assembly.
Use cross-pattern tightening sequence and verify parallelism (≤0.05mm deviation)
using dial indicator. Re-torque after 48hrs of initial operation.
| Property | Property Value |
|---|---|
| sku | F-SC200LB |
