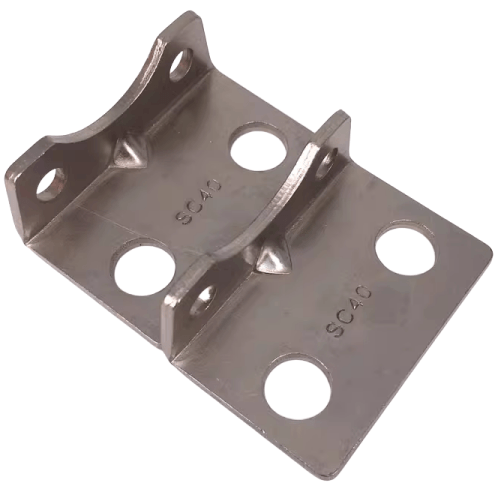

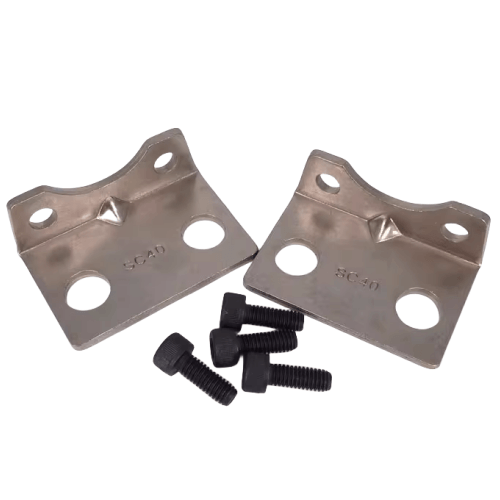

Airtac F-SC-LB Axial Fixing Bracket Finished Product Package F-SC32LB
Brand: AirTAC
Series: F-SC-LB Axial Fixing Mount Complete Kit
The F-SC-LB series represents a precision-engineered axial fixing mount assembly designed for secure cylinder installation and alignment stabilization. This complete mounting kit incorporates hardened mounting brackets and pre-assembled fastening components, ensuring optimal axial load distribution and vibration dampening in pneumatic systems. Features corrosion-resistant treated surfaces and standardized interface dimensions for seamless integration with AirTAC ISO-compliant cylinder series. Ideal for applications requiring precise linear motion control and enhanced structural rigidity in industrial automation setups.
AirTAC F-SC-LB Axial Bracket Kit F-SC32LB Technical Details
- Model: F-SC32LB (Complete Bracket Kit)
- Compatible cylinder series: SC32 standard cylinders
- Material: Anodized aluminum alloy (AL6061-T6)
- Surface treatment: Hard oxidation (25μm thickness)
- Mounting type: Axial dual-side fixed mounting
- Bolt specifications: M8×1.25 grade 12.9 hex socket screws
- Installation torque: 28-32 N·m
- Radial load capacity: 1,200N (static), 800N (dynamic)
- Axial load capacity: 2,500N (compression)
- Operating temperature: -20℃ to 150℃
- Weight: 1.85kg ±3% (complete assembly)
- Dimensions: 142mm(L) × 78mm(W) × 48mm(H)
- Mounting hole spacing: 125mm×60mm (longitudinal×transverse)
- Surface hardness: HV 400-450
- Corrosion resistance: 96hrs salt spray test passed
Heavy-duty axial support bracket designed for SC series cylinders, featuring dual reinforced ribs and precision-machined mounting surfaces (flatness ≤0.05mm). Includes pre-assembled mounting hardware with anti-vibration washers. Meets ISO 15552 mounting standards for industrial automation systems.
- Vertical cylinder mounting in press machinery
- Multi-axis robotic arm joint stabilization
- High-cycle packaging line actuators
- Automated welding equipment position locking
- Material handling system linear guides
Installation note:
Apply 5-7Nm pre-torque during alignment before final tightening.
Use thread-locking compound on fasteners in high-vibration environments.
Maintain 0.5mm clearance between bracket and cylinder end covers.
| Property | Property Value |
|---|---|
| sku | F-SC32LB |
