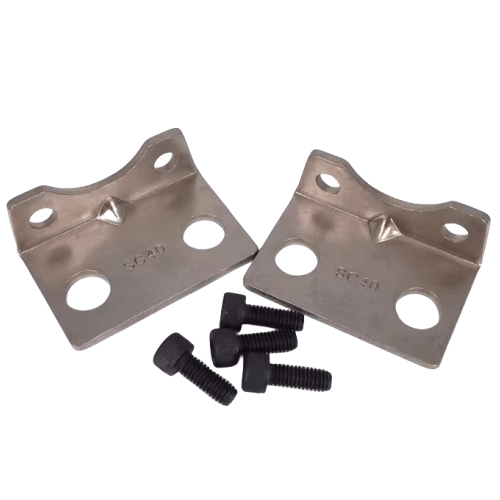

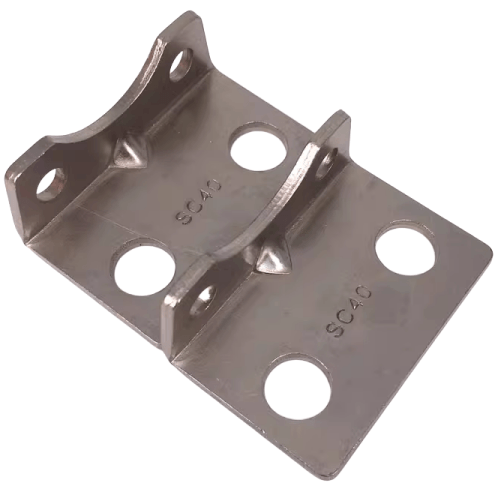

Airtac F-SC-LB Axial Fixing Bracket Finished Product Package F-SC40LB
Brand: AirTAC
Series: F-SC-LB Axial Fixing Mount Complete Kit
The F-SC-LB series represents a precision-engineered axial fixing mount assembly designed for secure cylinder installation and alignment stabilization. This complete mounting kit incorporates hardened mounting brackets and pre-assembled fastening components, ensuring optimal axial load distribution and vibration dampening in pneumatic systems. Features corrosion-resistant treated surfaces and standardized interface dimensions for seamless integration with AirTAC ISO-compliant cylinder series. Ideal for applications requiring precise linear motion control and enhanced structural rigidity in industrial automation setups.
AirTAC F-SC-LB Axial Mounting Bracket Kit F-SC40LB Technical Details
- Full model designation: F-SC40LB (Complete assembly kit)
- Bracket type: Linear bearing axial fixation unit
- Material: Aluminum alloy 6063-T5 with black anodized finish
- Static load capacity: ≤1,200N radial / ≤800N axial
- Dynamic load rating: ≤850N radial / ≤600N axial
- Suitable shaft diameter: 40mm (±0.01mm tolerance)
- Mounting hole spacing: 78mm (±0.2mm center distance)
- Mounting screw specification: M6×1.0 (4 places)
- Surface hardness: HV 400-450
- Operating temperature: -30℃ to 120℃ (continuous)
- Weight: 0.82kg (complete assembly)
- Dimensions: 120mm(L) × 50mm(W) × 40mm(H)
- Parallelism tolerance: ≤0.05mm/m
- Corrosion resistance: 96hrs salt spray test passed
Precision-engineered linear motion solution featuring dual-side clamping mechanism with hardened steel fasteners. Incorporates anti-vibration shim plates and alignment guide pins for zero-backlash installation. Compatible with standard DIN rail mounting systems. Includes pre-lubricated wear-resistant pads (PTFE composite) for smooth linear bearing operation.
- High-speed pick-and-place robot arm joints
- CNC machine tool linear guide retention systems
- Automated packaging line conveyor supports
- 3D printer gantry axis stabilization
- Semiconductor wafer handling equipment
Installation protocol:
Apply 2.5-3.5Nm torque during screw tightening using cross pattern sequence.
Requires periodic inspection (500hrs operation) of clamp plate tension.
Use alignment jig AJS-40LB (sold separately) for multi-bracket installations.
| Property | Property Value |
|---|---|
| sku | F-SC40LB |
