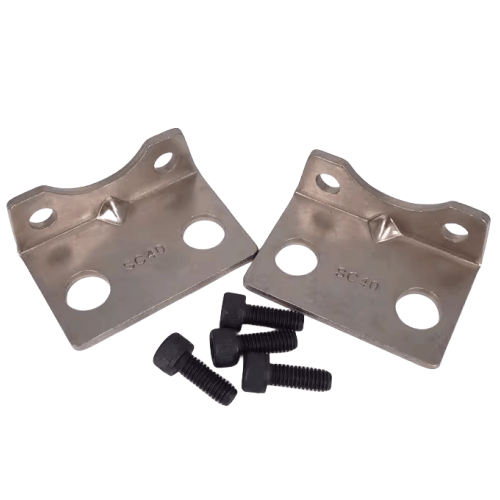

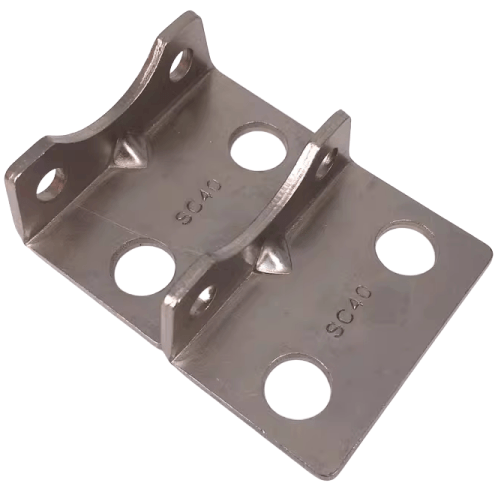

Airtac F-SC-LB Axial Fixing Bracket Finished Product Package F-SC50LB
Brand: AirTAC
Series: F-SC-LB Axial Fixing Mount Complete Kit
The F-SC-LB series represents a precision-engineered axial fixing mount assembly designed for secure cylinder installation and alignment stabilization. This complete mounting kit incorporates hardened mounting brackets and pre-assembled fastening components, ensuring optimal axial load distribution and vibration dampening in pneumatic systems. Features corrosion-resistant treated surfaces and standardized interface dimensions for seamless integration with AirTAC ISO-compliant cylinder series. Ideal for applications requiring precise linear motion control and enhanced structural rigidity in industrial automation setups.
AirTAC F-SC-LB Axial Fixing Bracket Kit F-SC50LB Technical Details
- Model: F-SC50LB (Complete Bracket Kit)
- Type: Precision linear motion axial retention system
- Shaft diameter compatibility: Ø50mm ±0.02mm tolerance
- Material: Aluminum alloy 6063-T5 (anodized finish)
- Surface treatment: Hard anodizing 25-30μm (black)
- Mounting hole pattern: 4×M8 threaded holes (10mm depth)
- Radial load capacity: 2,500N max (static), 1,800N dynamic
- Axial load capacity: 1,200N max
- Operating temperature: -40℃ to 120℃
- Vibration resistance: 10-2000Hz @ 15m/s² max
- Protection class: IP67 (sealed against dust & temporary immersion)
- Weight: 1.85kg ±3% (complete assembly)
- Dimensions: 128mm(L) × 68mm(W) × 62mm(H)
Heavy-duty axial fixation solution for high-precision linear guide systems. Features dual angular contact bearings with preloaded spring washers (included) for zero-backlash operation. Integrated sealing labyrinth prevents particulate ingress in XYZ axes. Compatible with ISO 10285 standard linear shafts.
- High-speed CNC tool changer mechanisms
- Semiconductor wafer handling robots
- Automated optical inspection (AOI) equipment
- Precision grinding machine slides
- Lithium battery stacking systems
Mounting protocol:
Apply 12-15Nm torque for M8 fasteners using cross-pattern tightening sequence.
Requires 0.02mm/m alignment accuracy during installation. Relubricate bearings
every 2,000 operational hours with NLGI #2 lithium grease.
| Property | Property Value |
|---|---|
| sku | F-SC50LB |
