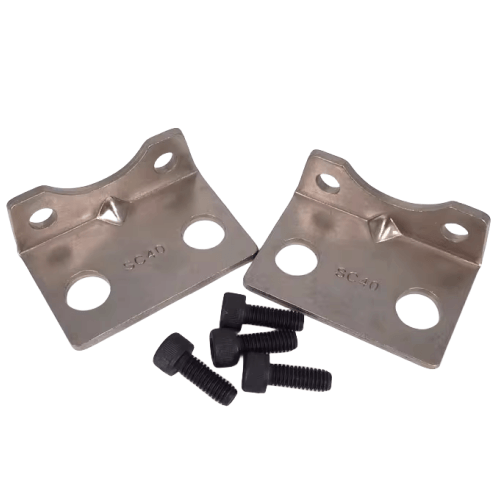

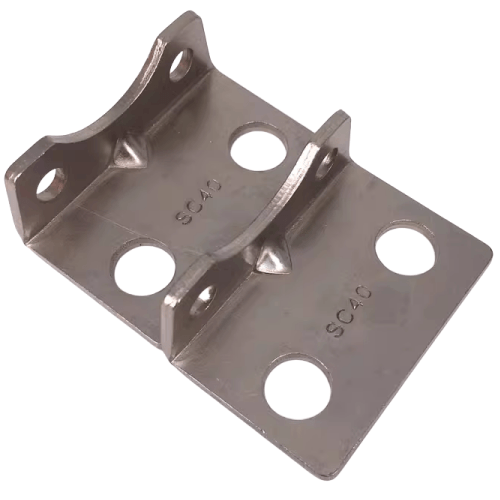

Airtac F-SC-LB Axial Fixing Bracket Finished Product Package F-SC63LB
Brand: AirTAC
Series: F-SC-LB Axial Fixing Mount Complete Kit
The F-SC-LB series represents a precision-engineered axial fixing mount assembly designed for secure cylinder installation and alignment stabilization. This complete mounting kit incorporates hardened mounting brackets and pre-assembled fastening components, ensuring optimal axial load distribution and vibration dampening in pneumatic systems. Features corrosion-resistant treated surfaces and standardized interface dimensions for seamless integration with AirTAC ISO-compliant cylinder series. Ideal for applications requiring precise linear motion control and enhanced structural rigidity in industrial automation setups.
AirTAC F-SC-LB Axial Fixing Bracket Kit F-SC63LB Technical Details
- Model: F-SC63LB (Complete Bracket Assembly)
- Compatible Rail: SBR/SBN/SBR20 Series 63 linear guides
- Material: Cold-rolled steel (CRS) with zinc-nickel plating
- Surface Treatment: Electro-phoretic deposition (ED coating)
- Mounting Hole Spacing: 140±0.15mm (longitudinal), 52±0.1mm (transverse)
- Fastener Torque: M8×1.25 bolts - 28-32 N·m
- Static Load Capacity: 2,150 kgf (axial direction)
- Dynamic Load Rating: 1,450 kgf @ 0.5m/s
- Operating Temp Range: -30℃ to 120℃ (continuous)
- Weight: 2.85 kg ±2% (complete assembly)
- Dimensions: 178mm(L) × 68mm(W) × 42mm(H)
- Vibration Resistance: 5-2000Hz, 15G acceleration (IEC 60068-2-6)
- Corrosion Resistance: 500hrs salt spray test (ISO 9227)
Heavy-duty axial support bracket engineered for high-precision linear motion systems. Features triple-sealed bearing surfaces and hardened steel contact points (HRC 45-50) to prevent micro-movement. Includes pre-assembled alignment pins and vibration-damping shims for rapid installation.
- CNC gantry axis reinforcement in machining centers
- Pallet transfer systems with multi-axis coordination
- Semiconductor wafer handling robots
- High-cycle automated packaging lines (200+ operations/min)
- Precision optical stage assemblies
Installation Protocol:
Requires parallel alignment within 0.02mm/m using laser calibration.
Apply LOCTITE 243 threadlocker to all fasteners. Thermal expansion compensation
needed when ambient temperature fluctuates beyond ±15℃.
| Property | Property Value |
|---|---|
| sku | F-SC63LB |
