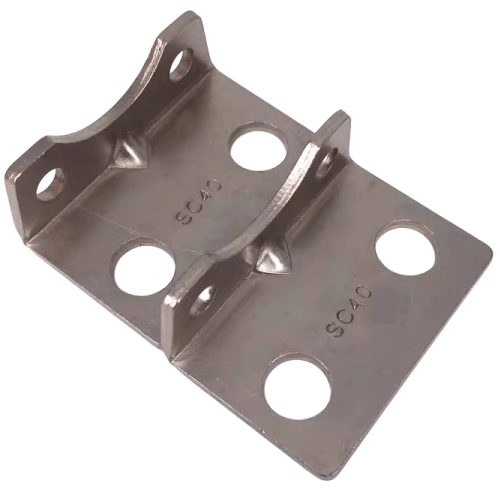

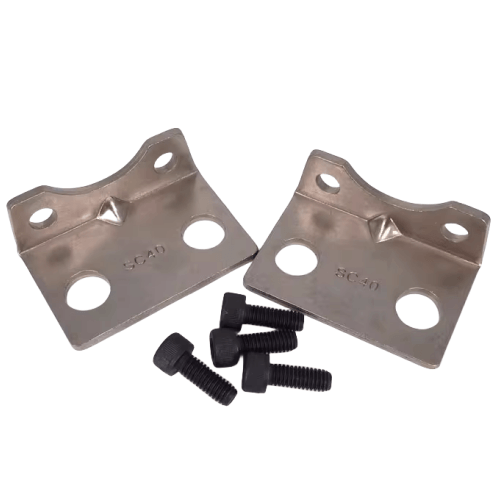

Airtac F-SC-LB Axial Fixing Bracket Finished Product Package F-SC80LB
Brand: AirTAC
Series: F-SC-LB Axial Fixing Mount Complete Kit
The F-SC-LB series represents a precision-engineered axial fixing mount assembly designed for secure cylinder installation and alignment stabilization. This complete mounting kit incorporates hardened mounting brackets and pre-assembled fastening components, ensuring optimal axial load distribution and vibration dampening in pneumatic systems. Features corrosion-resistant treated surfaces and standardized interface dimensions for seamless integration with AirTAC ISO-compliant cylinder series. Ideal for applications requiring precise linear motion control and enhanced structural rigidity in industrial automation setups.
AirTAC F-SC80LB Axial Mounting Bracket Complete Package Specifications
- Model: F-SC80LB
- Series: F-SC-LB precision axial support
- Material: Aluminum alloy 6063-T5
- Surface treatment: Anodized (black)
- Axial load capacity: 1,200N (static)/800N (dynamic)
- Mounting hole pattern: 75mm × 75mm square
- Shaft compatibility: Ø8mm linear shafts
- Bore diameter: 8.2mm (+0.03/-0 mm tolerance)
- Fastener type: M6 × 1.0 stainless steel screws (4 pcs included)
- Operating temperature: -20℃ to 100℃
- Vibration resistance: ≤10 m/s² (15-2000Hz)
- Weight: 2.4kg ±5%
- Dimensions: 80mm(L) × 80mm(W) × 42mm(H)
- Parallelism tolerance: ≤0.02mm/100mm
- Surface roughness: Ra 1.6μm (bearing contact areas)
High-precision CNC-machined axial support bracket with integrated preload adjustment, designed for zero-backlash linear motion systems. Features corrosion-resistant anodized finish and diamond-cut mounting surfaces for optimal alignment. Includes vibration-damping shim washers and alignment pins.
- Linear guide rail end supports in CNC routers
- Ball screw fixation in automated assembly lines
- 3D printer gantry axis stabilization
- Semiconductor wafer handling robots
- Laser cutting machine linear motion systems
Installation protocol:
Apply 2.5-3.0N·m torque during screw tightening using cross-pattern sequence.
Use dial indicator to verify ≤0.05mm runout after installation. Compatible with
ISO 107 lubricants for high-cycle applications.
| Property | Property Value |
|---|---|
| sku | F-SC80LB |
