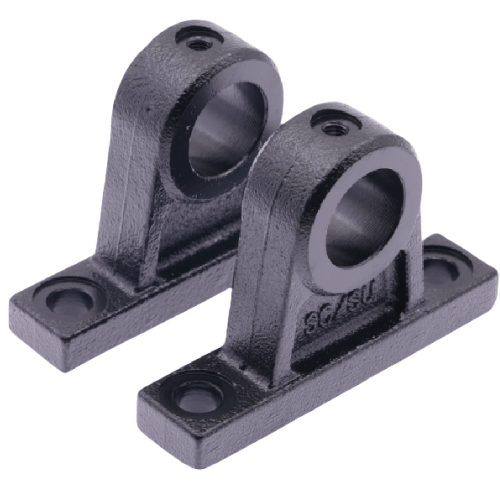

Airtac F-SC-TCM Trunnion Mount Finished Assembly Kit F-SC80TCM1
$27.88
Regular price
$35.38
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-SC80TCM1
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Category: Cylinder Accessories
Brand: Airtac
Series: F-SC-TCM
Product Name: Trunnion Mount Bracket Assembly
Description: Precision-engineered trunnion mount bracket for cylinder stabilization, featuring corrosion-resistant zinc alloy construction with pre-drilled mounting holes for versatile installation. Includes integrated pivot bearings for ±5° angular adjustment, ensuring precise alignment in pneumatic systems. ISO 6432 compliant design with 4-M6 threaded ports for accessory integration. Rated for 0.15-1.0 MPa operating pressure.
Installation guidance:
Use 12Nm torque for M8 fasteners. Apply thread-locking compound for high-cycle applications.
Align cylinder axis within ±0.5° before final tightening. Regular inspection recommended every 50,000 cycles.
AirTAC F-SC-TCM Trunnion Bracket Kit F-SC80TCM1 Technical Details
- Model: F-SC80TCM1
- Type: Pre-assembled trunnion bracket kit
- Compatible cylinder series: SC/SU/SE 80mm bore size
- Material: Aluminum alloy (A6063-T5)
- Surface treatment: Black anodized (8-12μm)
- Mounting hole size: M8 threaded (8.4mm clearance hole)
- Max radial load: 2,500N
- Max axial load: 1,800N
- Rotation angle: ±5° adjustable
- Operating temperature: -20℃ to 80℃
- Protection class: IP54 (standard sealing)
- Weight: 0.75kg ±3%
- Dimensions: 80mm(L) × 40mm(W) × 40mm(H)
- Included hardware: 2x M8×25 hex bolts, 4x anti-vibration washers
Heavy-duty pivot mount engineered for precision alignment of mid-sized pneumatic cylinders. Features dual-axis adjustability with integrated locking mechanism for vibration resistance. Pre-lubricated bushings ensure smooth rotation and reduced wear.
Ideal Applications:
- Robotic arm articulation joints
- Material handling conveyor diverters
- Automated welding positioners
- Packaging machine rotary actuators
- Textile machinery tension control systems
Installation guidance:
Use 12Nm torque for M8 fasteners. Apply thread-locking compound for high-cycle applications.
Align cylinder axis within ±0.5° before final tightening. Regular inspection recommended every 50,000 cycles.
| Property | Property Value |
|---|---|
| sku | F-SC80TCM1 |
