Airtac F-SE-CA Single Lug Bracket Assembled Kit F-SE125CA
$50.00
Regular price
$57.50
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-SE125CA
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Category: Cylinder Accessories
Brand: AIRTAC
Series: F-SE-CA

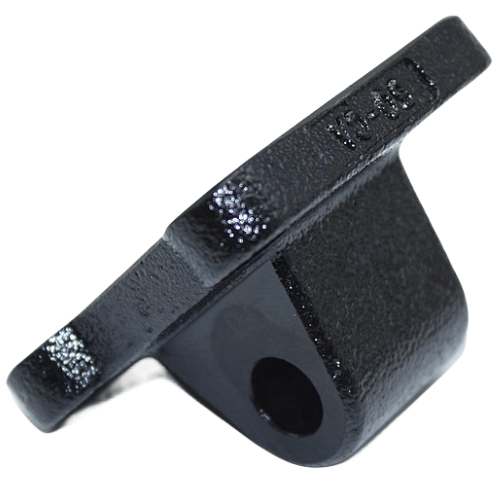

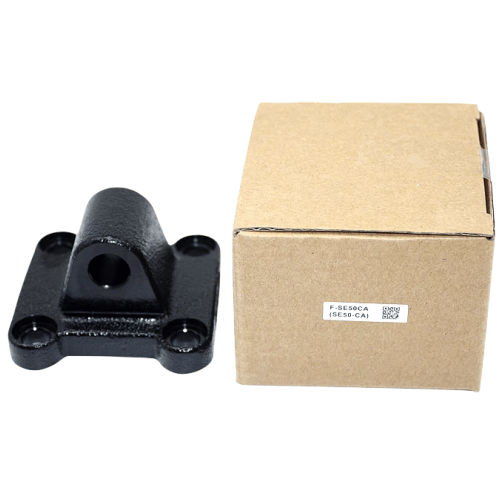

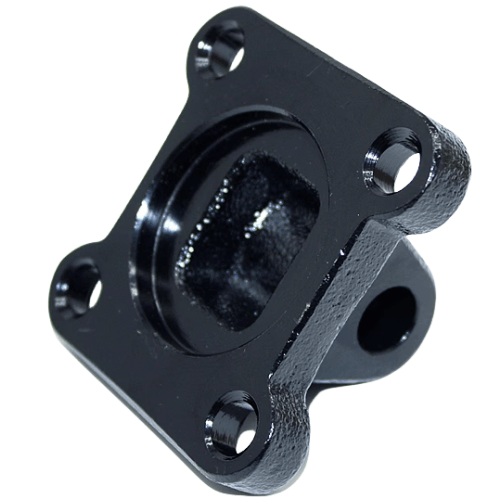

**F-SE-CA Single Ear Bracket Complete Assembly Kit**
AIRTAC's F-SE-CA series single ear mounting bracket kit provides a robust and precision-engineered solution for cylinder fixation in pneumatic systems. Designed for seamless integration with standard cylinder models, this complete assembly features a reinforced single-ear structure with pre-drilled mounting holes for quick installation. The zinc-plated steel construction ensures corrosion resistance and extended service life in demanding industrial environments. Compatible with ISO 15552 cylinder profiles, it delivers vibration-dampening stability and precise axial alignment during reciprocating motions. The kit includes all necessary fasteners (DIN 933 hex bolts and DIN 985 lock nuts) for secure mounting, meeting ISO 6431 mounting standards. Ideal for linear motion applications requiring rigid mounting interfaces while maintaining angular adjustment flexibility.
Installation tip:
Apply 2.5-3.5N·m torque during screw tightening using a calibrated torque wrench.
Use alignment pins (not included) for multi-bracket installations requiring coaxial positioning.
AirTAC F-SE-CA Single-Ear Mounting Bracket Kit F-SE125CA Technical Details
- Model: F-SE125CA
- Type: Single-ear fixed bracket assembly kit
- Material: Aluminum alloy 6063-T5
- Surface treatment: Anodized oxidation (black)
- Compatible cylinder series: SC/SU/SE standard cylinders
- Bore size compatibility: Ø32-Ø125mm cylinders
- Mounting hole diameter: 8.5mm (for M8 screws)
- Hole spacing: 40±0.2mm (vertical) × 25±0.15mm (horizontal)
- Maximum load capacity: 150kg static / 75kg dynamic
- Weight: 0.68kg ±2%
- Dimensions: 145mm(L) × 68mm(W) × 42mm(H)
- Operating temperature: -20℃ to 80℃
- Vibration resistance: 10-55Hz @ 1.5mm amplitude
- Corrosion resistance: 96hrs salt spray test passed
- Rail compatibility: HSR15/20/25/30/35 linear guideways
- Package contents: Bracket body, M8×25 hex socket screws (Qty 4), flat washers (Qty 4), installation manual
Heavy-duty mounting solution for precise cylinder alignment, featuring CNC-machined positioning surfaces with ±0.05mm parallelism tolerance. The wedge-lock design enables micro-adjustment (±2°) during installation. Includes anti-vibration rubber pads (Shore A70) for shock absorption.
Common Applications:
- Robotic arm joint mounting in automotive welding lines
- Pneumatic press cylinder stabilization
- Packaging machine vertical actuator support
- Semiconductor handling equipment linear motion systems
- Conveyor belt tension adjustment mechanisms
Installation tip:
Apply 2.5-3.5N·m torque during screw tightening using a calibrated torque wrench.
Use alignment pins (not included) for multi-bracket installations requiring coaxial positioning.
| Property | Property Value |
|---|---|
| sku | F-SE125CA |
