Airtac F-SE-CA Single Lug Bracket Assembled Kit F-SE32CA
$9.73
Regular price
$17.23
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-SE32CA
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Category: Cylinder Accessories
Brand: AIRTAC
Series: F-SE-CA

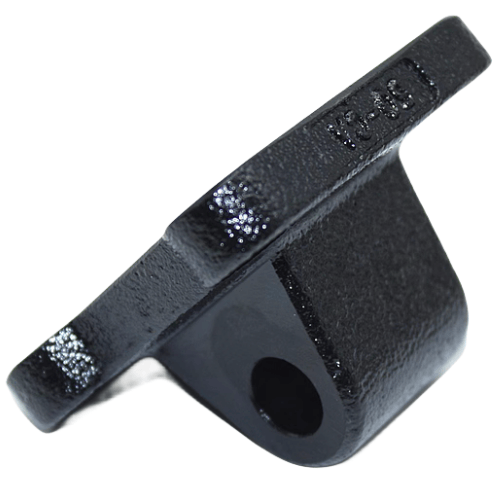

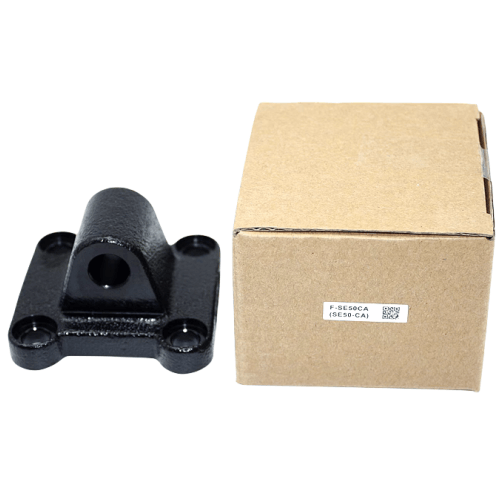

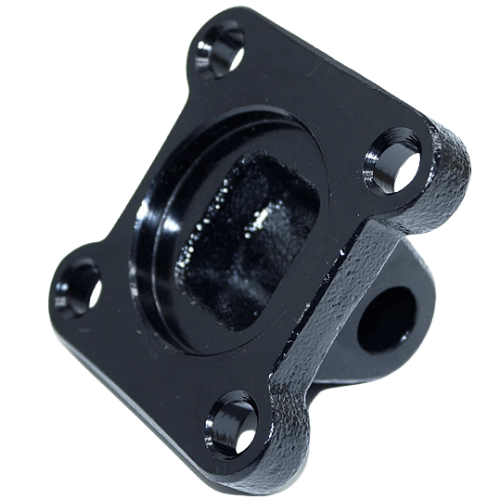

**F-SE-CA Single Ear Bracket Complete Assembly Kit**
AIRTAC's F-SE-CA series single ear mounting bracket kit provides a robust and precision-engineered solution for cylinder fixation in pneumatic systems. Designed for seamless integration with standard cylinder models, this complete assembly features a reinforced single-ear structure with pre-drilled mounting holes for quick installation. The zinc-plated steel construction ensures corrosion resistance and extended service life in demanding industrial environments. Compatible with ISO 15552 cylinder profiles, it delivers vibration-dampening stability and precise axial alignment during reciprocating motions. The kit includes all necessary fasteners (DIN 933 hex bolts and DIN 985 lock nuts) for secure mounting, meeting ISO 6431 mounting standards. Ideal for linear motion applications requiring rigid mounting interfaces while maintaining angular adjustment flexibility.
Installation protocol:
Clean mounting surface to Ra3.2 roughness or better. Use torque wrench
for even force distribution. Perform concentricity check within 0.05mm
tolerance after installation.
AirTAC F-SE-CA Single Ear Bracket Kit F-SE32CA Technical Details
- Model: F-SE32CA
- Type: Single ear mounting bracket kit (pre-assembled)
- Material: Aluminum alloy ADC12
- Surface treatment: Anodized (black)
- Bracket length: 100mm
- Rail width compatibility: 32mm (for SGC/SDA32 series guides)
- Mounting hole spacing: 80±0.2mm
- Screw specification: M6×20 (included)
- Load capacity:
- Dynamic load: 1,200N
- Static load: 2,400N
- Installation torque: 3.5-4.5N·m
- Operating temperature: -20°C to 80°C
- Corrosion resistance: 96hr salt spray test passed
- Certifications: ISO 9001, RoHS compliant
- Package contents: Bracket, mounting screws, anti-vibration washers
- Weight: 450g ±5%
- Dimensions: 100mm(L) × 32mm(W) × 25mm(H)
Heavy-duty single ear bracket designed for precision linear guide mounting in high-moment applications. Features reinforced rib structure and hardened contact surfaces (HRC 45±2) for improved load distribution. Includes stainless steel fasteners with Loctite® pre-applied thread locker.
Typical Applications:
- CNC machine tool slide units
- Automated warehouse stacker cranes
- Lithium battery production line conveyors
- Robotic arm positioning systems
- Semiconductor wafer handling equipment
Installation protocol:
Clean mounting surface to Ra3.2 roughness or better. Use torque wrench
for even force distribution. Perform concentricity check within 0.05mm
tolerance after installation.
Maintenance:
Re-torque after first 50 operating hours. Inspect every 2,000hrs
or 6 months. Replace if surface oxidation exceeds 5% area.
