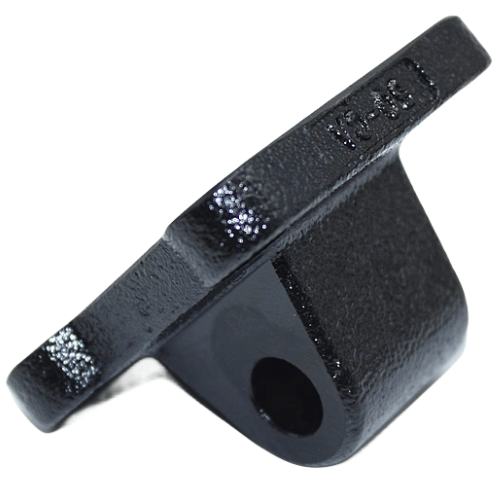

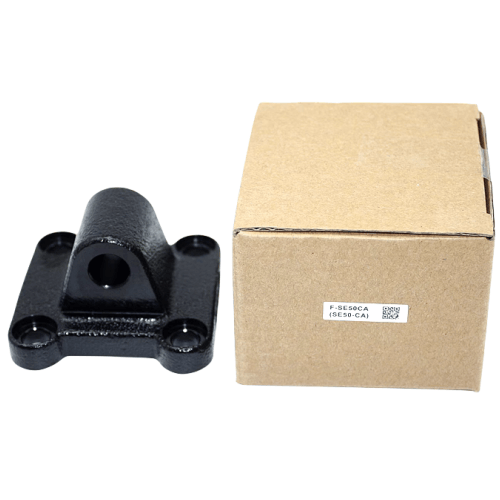

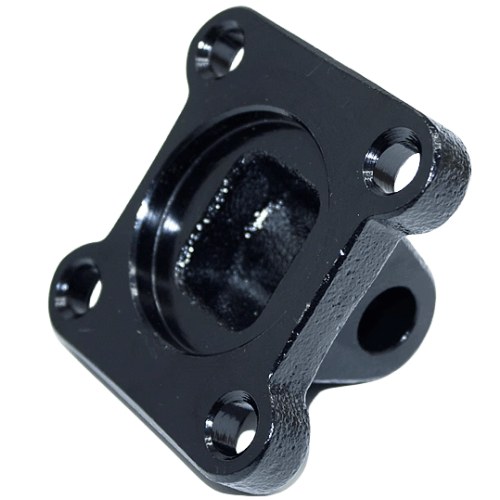

Airtac F-SE-CA Single Lug Bracket Assembled Kit F-SE50CA
AirTAC F-SE-CA Single-Ear Mounting Bracket Kit F-SE50CA Technical Details
- Model: F-SE50CA (Complete Kit)
- Type: Precision-engineered single-ear aluminum bracket
- Material: 6063-T5 aluminum alloy body + SUS304 stainless steel fasteners
- Compatible Cylinder Bore Size: ø50mm
- Vertical Load Capacity: 300kg max (static) / 150kg (dynamic)
- Lateral Load Capacity: 180kg max (static) / 90kg (dynamic)
- Mounting Hole Pattern: 65mm × 45mm rectangular array (M6 threaded holes)
- Surface Treatment: Hard anodized (25μm) + Teflon coating
- Rail Compatibility: MISUMI/THK-type linear guide blocks
- Operating Temperature: -40℃ to 120℃
- Vibration Resistance: 5-2000Hz, 30m/s² max
- Weight: 850g ±2% (including all hardware)
- Dimensions: 128mm(L) × 78mm(W) × 42mm(H)
- IP Rating: IP54 (standard configuration)
Heavy-duty alignment bracket system featuring anti-corrosion construction and precision-machined locating surfaces (flatness ≤0.02mm). Includes pre-assembled mounting hardware with vibration-resistant Loctite® adhesive treatment. Designed for permanent installations requiring micron-level positional stability under thermal variation.
- Industrial robot end-effector mounting
- CNC machine tool linear guide systems
- Semiconductor wafer handling equipment
- High-speed packaging line conveyor supports
- Automated optical inspection (AOI) camera brackets
Installation protocol:
Use 8.8-grade M6 bolts torqued to 10Nm ±15%. Apply alignment jig (PN: AJ-50SE) during
installation to maintain parallel tolerance. Avoid galvanic corrosion by using
dielectric grease when mating with dissimilar metals.
| Property | Property Value |
|---|---|
| sku | F-SE50CA |
