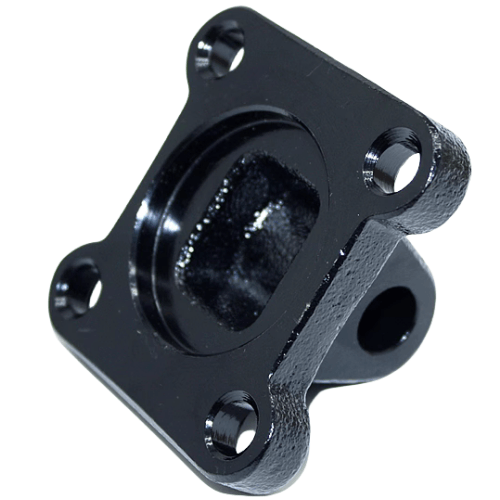

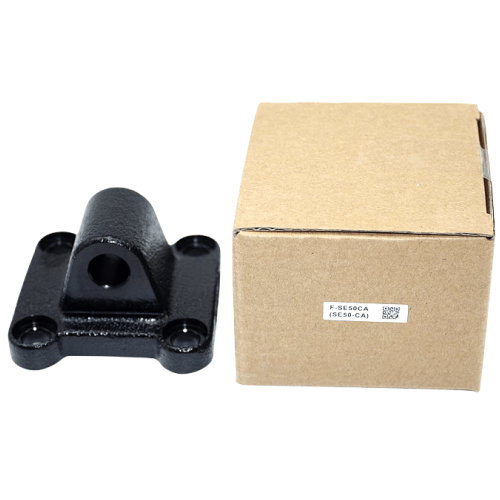

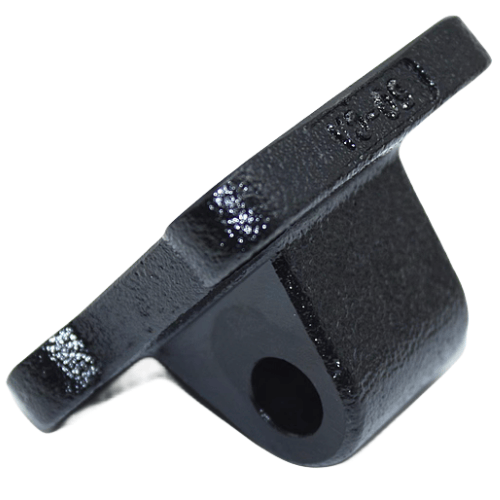

Airtac F-SE-CA Single Lug Bracket Assembled Kit F-SE80CA
AirTAC F-SE-CA Single Ear Bracket Kit F-SE80CA Technical Details
- Model: F-SE80CA (Complete Assembly Kit)
- Type: Single-flange fixed mounting bracket
- Material: Aluminum alloy ADC12
- Surface treatment: Anodized (natural color)
- Mounting hole spacing: 80±0.2mm (center-to-center)
- Thread specifications: M6×1.0 internal threads (4 holes)
- Max load capacity: 120kg (static load), 80kg (dynamic load)
- Operating temperature: -20℃ to 150℃
- Weight: 348g ±5g
- Dimensions: 110mm(L) × 50mm(W) × 30mm(H)
- Hardness: 80-85 HB
- Corrosion resistance: 96hrs salt spray test compliant
- Compatible cylinder series: SC/SU/SI 80mm bore size
Precision-machined mounting solution for cylinder fixation, featuring anti-vibration design with integrated damping washers. The asymmetrical ear structure allows offset load distribution while maintaining 360° position adjustability. Includes all necessary Class 8.8 mounting hardware and anti-loosening inserts.
- Industrial robot end-effector mounting
- Pneumatic press vertical guiding systems
- Packaging machine rotary actuator installations
- Automated assembly line positioning fixtures
- Material handling equipment pivot points
Installation protocol:
Apply 12-15N·m torque using calibrated wrench during assembly.
Use shim plates when mounting on uneven surfaces (>0.2mm variance).
Periodic re-torquing recommended after 500 operational hours.
| Property | Property Value |
|---|---|
| sku | F-SE80CA |
