Airtac F-SE-CB Double Ear Fixed Bracket Assembly F-SE125CB
AirTAC F-SE-CB Double Ear Mounting Bracket Kit F-SE125CB Technical Details
- Model: F-SE125CB (Complete Kit)
- Type: Universal double-ear mounting bracket with pre-assembled hardware
- Material: Aluminum alloy ADC12 with anti-corrosion treatment
- Compatible Series: SC/SU/SI standard cylinders (Ø32-125mm)
- Mounting Style: Through-hole dual flange fixation
- Surface Finish: Anodized black (12-15μm thickness)
- Bolt Specifications: M8×1.25 stainless steel hex socket screws (Class 8.8)
- Operating Temp Range: -20℃ to +80℃
- Max Load Capacity: 1,200N axial / 600N radial
- Vibration Resistance: 10-55Hz @ 1.5mm amplitude
- Protection Rating: IP40 (standard configuration)
- Weight: 320g ±5% (including fasteners)
- Dimensions: 125mm(L) × 50mm(W) × 20mm(H)

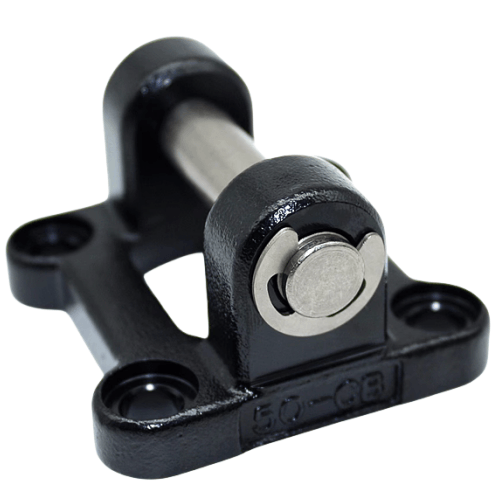

Precision-engineered mounting solution featuring symmetrical reinforcement ribs and CNC-machined alignment grooves. Includes vibration-resistant spring washers and Loctite-treated threads for permanent installations. Compatible with pneumatic cylinder series requiring stable dual-point fixation under dynamic loads.
- Robotic arm joint stabilization in automotive welding lines
- High-cycle packaging machinery cylinder mounting
- Vertical actuator installations in cleanroom environments
- Material handling systems with reciprocating motion
- Plastic injection molding machine ejector mechanisms
Installation Protocol:
Use 8-10Nm torque with calibrated wrench during assembly.
Apply lithium-based grease to contact surfaces if frequent reorientation is required.
Not recommended for angular misalignment exceeding ±0.5°.
