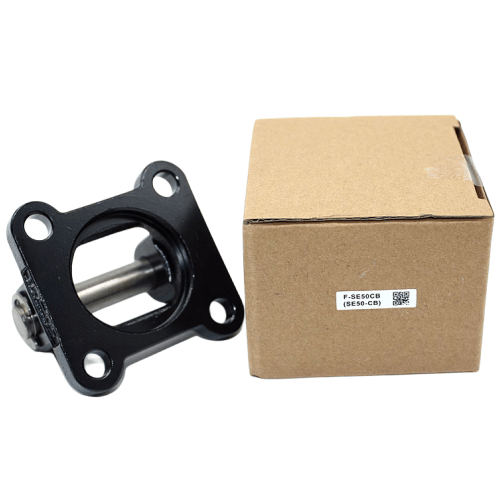

Airtac F-SE-CB Double Ear Fixed Bracket Assembly F-SE50CB
AirTAC F-SE-CB Double Ear Bracket Kit F-SE50CB Technical Details
- Model: F-SE50CB (Complete Bracket Kit)
- Type: Universal mounting bracket with pre-assembled hardware
- Material: Aluminum alloy ADC12 with anodized surface
- Mounting Hole Spacing: 50mm ±0.1mm (center-to-center)
- Bolt Specification: M5 × 0.8mm pitch stainless steel bolts included
- Load Capacity: Max 30kg static load (axial direction)
- Compatible Cylinder Diameter: Designed for Ø50mm cylinders
- Temperature Range: -20℃ to +80℃ continuous operation
- Surface Hardness: HV 120-150 (anodized layer)
- Anti-Corrosion Rating: 96hrs salt spray test passed
- Weight: 320g ±5% (including all mounting components)
- Dimensions: 120mm(L) × 50mm(W) × 25mm(H)
High-precision CNC-machined bracket system featuring dual reinforced ears with integrated vibration damping. Includes pre-installed locking nuts and alignment pins for tool-free cylinder installation. The asymmetric design allows ±3° angular adjustment during mounting. Compatible with ISO 6432 standard cylinders and most pneumatic actuators.
- Industrial robotic arm joint fixation
- Packaging line cylinder mounting in food-grade environments
- Semiconductor wafer handling equipment
- Vertical actuator support in automated warehouse systems
- Medical device pneumatic component mounting
Installation protocol:
Apply 2.5-3.5N·m torque during bolt tightening using crisscross pattern.
Use shim washers if mounting surface flatness exceeds 0.1mm/mm².
Compatible with anti-vibration pads (sold separately) for high-frequency applications.
| Property | Property Value |
|---|---|
| sku | F-SE50CB |
