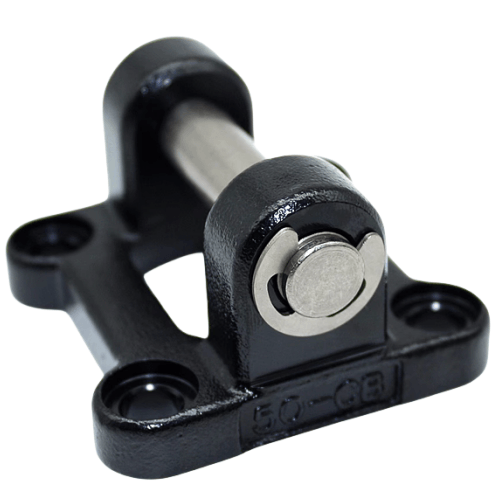

Airtac F-SE-CB Double Ear Fixed Bracket Assembly F-SE63CB
AirTAC F-SE-CB Double Ear Bracket Kit F-SE63CB Technical Details
- Model: F-SE63CB
- Type: Pre-assembled mounting bracket kit (dual ear design)
- Material: Aluminum alloy ADC12 with anti-corrosion treatment
- Compatible cylinder series: SE63 standard cylinders
- Mounting hole spacing: 32±0.1mm (center-to-center)
- Fastener specs: M6×12mm hex socket screws (grade 12.9) included
- Surface treatment: Black anodized finish
- Temperature resistance: -20°C to 120°C
- Static load capacity: 1,200N radial / 800N axial
- Weight: 215g ±5g (including all hardware)
- Dimensions: 98mm(L) × 48mm(W) × 24mm(H)
- Mounting torque: 4.5-5.5N·m (recommended for M6 screws)
- Vibration resistance: ≤20m/s² (ISO 10816-3 compliant)
Durable dual-ear mounting solution designed for secure cylinder fixation in high-vibration environments. Features precision-machined alignment grooves and wear-resistant coating. Includes pre-installed shock-absorbing washers to prevent loosening under cyclic loads. Compatible with ISO 15552 mounting standards.
- Robotic arm joint actuators in automotive assembly
- Packaging line cylinder mounting with side load compensation
- Plastic injection molding machine ejector mechanisms
- Material handling systems with space constraints
- Multi-axis pneumatic positioning devices
Installation protocol:
Apply medium-strength thread locker (Loctite 243 recommended) on screw threads before assembly.
Use torque wrench for final tightening. Align bracket ears parallel to cylinder axis for optimal load distribution.
| Property | Property Value |
|---|---|
| sku | F-SE63CB |
