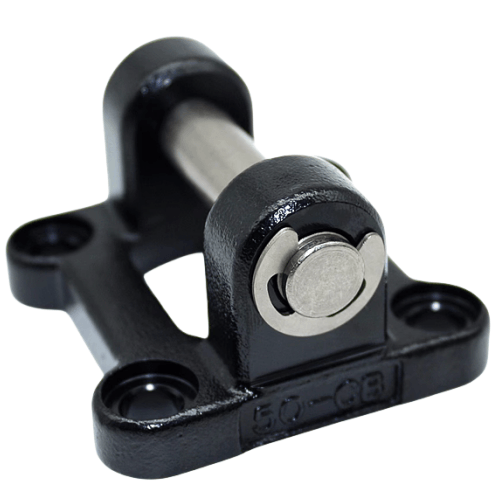

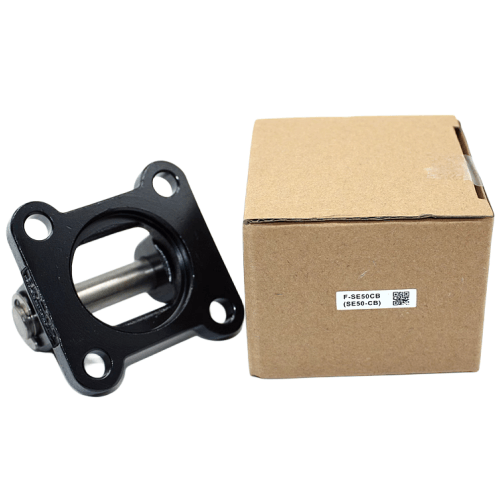

Airtac F-SE-CB Double Ear Fixed Bracket Assembly F-SE80CB
AirTAC F-SE-CB Double Ear Fixing Bracket Kit F-SE80CB Technical Details
- Model: F-SE80CB
- Type: Pre-assembled double-ear mounting bracket kit
- Material: Aluminum alloy ADC12 (anodized finish)
- Surface treatment: Black electrophoretic coating
- Compatible cylinder series: SC/SU/SI 80mm bore size
- Mounting hole spacing: 60±0.1mm (vertical) × 40±0.1mm (horizontal)
- Fastener grade: Class 8.8 zinc-plated steel bolts
- Static load capacity: 1,200N (axial), 800N (radial)
- Vibration resistance: 5-2000Hz, 15G acceleration
- Weight: 480±10g (complete kit)
- Dimensions: 112mm(L) × 78mm(W) × 34mm(H)
- Operating temperature: -40℃ to 120℃
- Corrosion resistance: 96hrs salt spray test compliant
Heavy-duty mounting solution for precise cylinder alignment, featuring CNC-machined reference surfaces (flatness ≤0.02mm) and anti-loosening flange nuts. Includes pre-installed shock-absorbing washers and alignment pins for vibration-prone environments. Compatible with ISO 15552 cylinder profiles.
- Robotic welding arm pivot point reinforcement
- High-cycle packaging machinery linear actuators
- Plastic injection molding machine ejection systems
- Automated warehouse vertical lift mechanisms
- Food processing conveyor belt tensioning units
Mounting protocol:
Apply 25-30N·m torque during installation using calibrated tools.
Use shim plates (sold separately) when mounting on uneven surfaces (>0.1mm deviation).
| Property | Property Value |
|---|---|
| sku | F-SE80CB |
