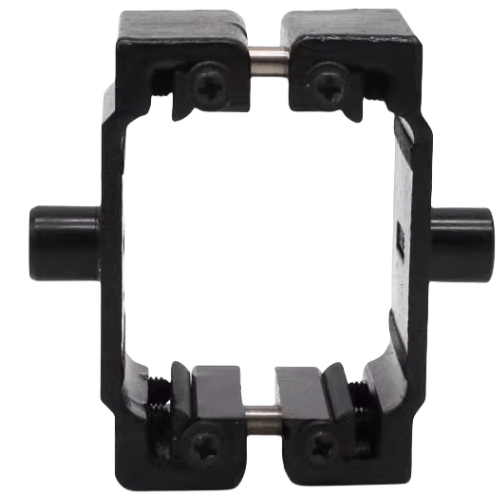

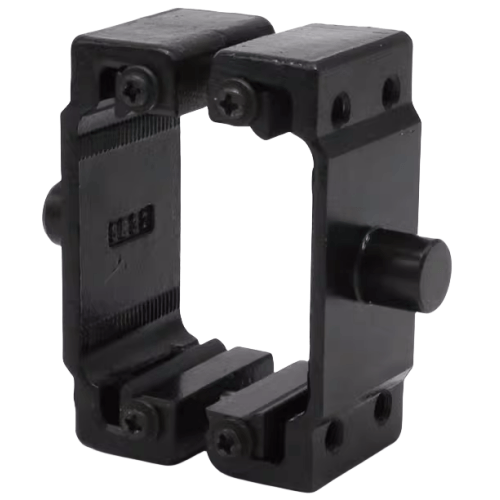

Airtac F-SE-TC Center Trunnion Bracket F-SE100TC
AirTAC F-SE-TC Series Pivot Bracket F-SE100TC Technical Details
- Model: F-SE100TC
- Type: Intermediate pivot bracket with through-hole design
- Material: Aluminum alloy ADC12
- Surface treatment: Black anodized
- Bore compatibility: Designed for Ø100mm cylinders
- Mounting hole pattern: 4×M8 threaded holes (depth 12mm)
- Center hole diameter: Ø12H7 (+0.018/0 mm)
- Lateral adjustment range: ±2mm
- Static load capacity: 1,500N (axial), 800N (radial)
- Weight: 1.23kg ±2%
- Dimensions: 150mm(L) × 50mm(W) × 50mm(H)
- Operating temperature: -20℃ to 80℃
- Vibration resistance: ≤50m/s² (10-150Hz)
- Corrosion resistance: 96hrs salt spray test (per ASTM B117)
Heavy-duty pivot bracket featuring dual angular contact bearings for smooth rotational movement under load. Precision-machined mounting surfaces (Ra1.6μm) ensure accurate cylinder alignment. Includes stainless steel shim washers for backlash adjustment (0.05-0.2mm range). Compatible with ISO 15552 cylinder profiles.
- Rotary clamping mechanisms in CNC fixture systems
- Pivoting actuator mounts for material handling robots
- Oscillating motion units in packaging conveyors
- Support structure for multi-axis pneumatic positioning
- Damping linkage in press machine tooling
Installation protocol:
Apply medium-strength thread locker (Loctite 243 recommended) on M8 fasteners.
Torque to 28-32N·m using crisscross pattern. Perform concentricity check with dial
indicator (max 0.1mm TIR) after installation.
| Property | Property Value |
|---|---|
| sku | F-SE100TC |
