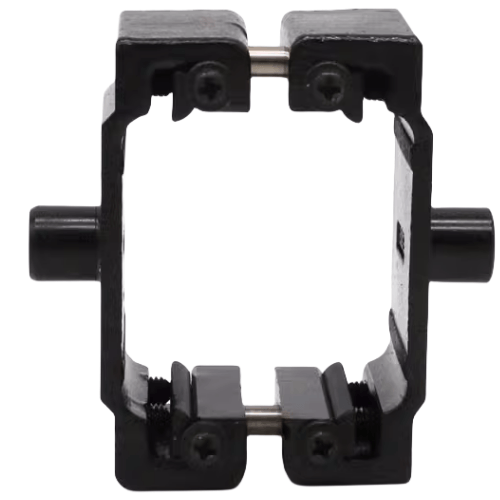

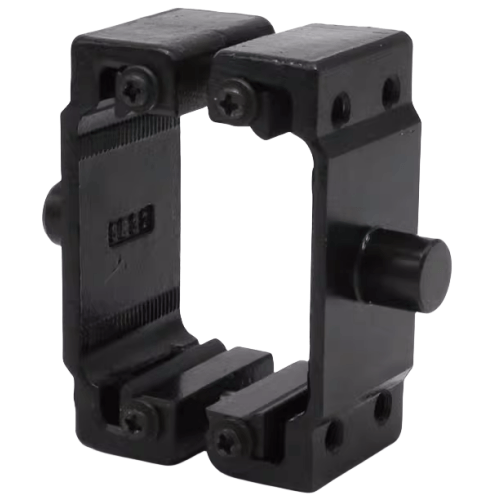

Airtac F-SE-TC Center Trunnion Bracket F-SE50TC
AirTAC F-SE-TC Series Midline Pivot Bracket F-SE50TC Technical Details
- Model: F-SE50TC
- Type: Reinforced midline pivot mounting bracket
- Material: High-grade aluminum alloy (ADC12)
- Surface treatment: Anodized black finish (18-22μm thickness)
- Max load capacity: 250 kgf (static), 180 kgf (dynamic)
- Mounting hole spacing: 50mm ±0.1mm (center-to-center)
- Bolt specifications: M8 × 1.25 × 20L (Class 10.9)
- Angular adjustment: ±5° lateral tilt compensation
- Weight: 485g ±2% (unpackaged)
- Dimensions: 78mm(L) × 52mm(W) × 34mm(H)
- Operating temperature: -40℃ to 120℃
- Vibration resistance: 5-2000Hz, 20G acceleration
- Corrosion rating: 500hrs salt spray test compliant
- Compatible cylinders: SC/SU-32 to 100 series
Heavy-duty pivot bracket engineered for precision alignment in high-moment applications. Features dual-bearing reinforcement and anti-loosening thread design, with integrated lubrication grooves for reduced wear. The hardened contact surfaces (HRC 45-50) ensure stable load transfer in repetitive motion systems.
- Robotic welding arm torque compensation
- Automated conveyor belt tensioning systems
- CNC machine tool cylinder mounting
- Packaging equipment oscillating mechanisms
- Agricultural machinery pivot joints
Installation protocol:
Apply 25-30N·m torque during assembly using a calibrated wrench.
Periodic maintenance: Relubricate pivot points every 2,000 operating hours
with ISO VG32 hydraulic oil. Avoid side-impact forces exceeding 150N.
| Property | Property Value |
|---|---|
| sku | F-SE50TC |
