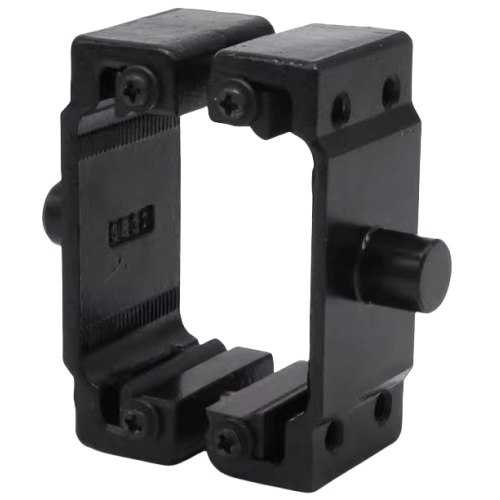

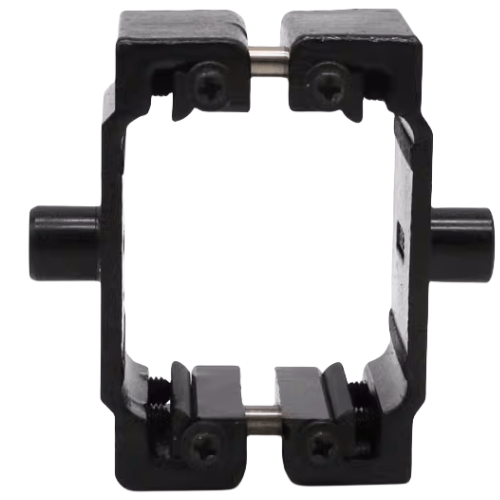

Airtac F-SE-TC Center Trunnion Bracket F-SE63TC
AirTAC F-SE-TC Series Center Pivot Bracket F-SE63TC Technical Details
- Model: F-SE63TC
- Type: Center pivot bracket with reinforced mounting ears
- Material: Aluminum alloy 6063-T5
- Surface treatment: Black anodized (15-20μm thickness)
- Bore compatibility: Designed for ø63mm cylinders
- Max radial load capacity: 1,800N
- Max axial load capacity: 900N
- Mounting hole spacing: 40mm (±0.2mm tolerance)
- Bolt size: M6 × 1.0 pitch (grade 8.8 recommended)
- Temperature range: -20℃ to 120℃
- Weight: 0.35kg ±2%
- Dimensions: 63mm(L) × 40mm(W) × 45mm(H)
- Installation torque: 5.5-6.5N·m (for mounting bolts)
- Compatible series: F-SC/SU/SI 63mm bore cylinders
Precision-machined pivot bracket featuring dual reinforced mounting ears with anti-vibration design. The hardened steel pivot pin (HRC 45-50) incorporates a self-lubricating bronze bushing for smooth articulation. Includes 4x corrosion-resistant M6 mounting bolts with spring washers. Meets ISO 15552 mounting standards for universal compatibility.
- Robotic welding arm articulation points
- Packaging line cylinder mounting in humid environments
- Automated material handling system linkages
- Plastic injection molding machine ejector mechanisms
- Food processing equipment with frequent washdown requirements
Installation protocol:
Apply medium-strength thread locker (Loctite 243 equivalent) to mounting bolts.
Ensure pivot pin axis remains perpendicular to cylinder centerline within ±0.5° tolerance.
Relubricate bushing every 500,000 cycles using MIL-PRF-81322 grease.
| Property | Property Value |
|---|---|
| sku | F-SE63TC |
