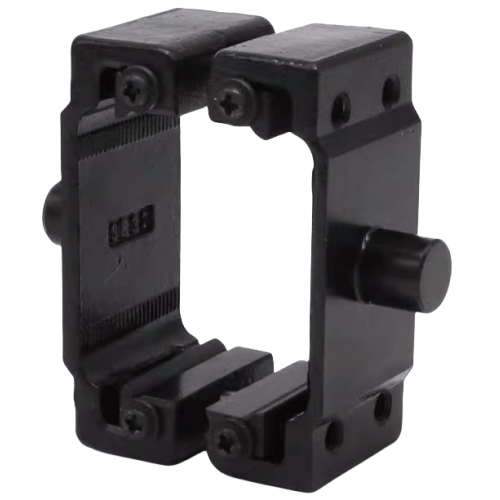

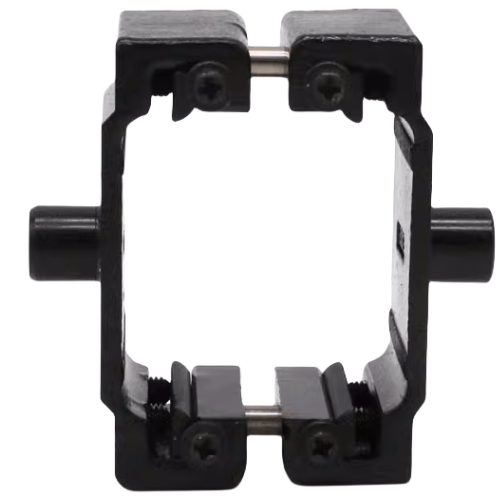

Airtac F-SE-TC Center Trunnion Bracket F-SE80TC
AirTAC F-SE-TC Series Trunnion Bracket F-SE80TC Technical Details
- Model: F-SE80TC
- Type: Heavy-duty trunnion mount bracket (central pivot)
- Material: Aluminum alloy ADC12 with chrome plating
- Surface treatment: Hard anodized (20-25μm thickness)
- Static load capacity: 8,000N vertical / 4,500N lateral
- Dynamic load capacity: 3,200N vertical @ 0.5m/s
- Mounting hole pattern: 4×M8 threaded holes (8mm depth)
- Center bore diameter: Ø20H7 (+0.021/0)
- Bracket thickness: 28mm at stress points
- Operating temperature: -40℃ to 120℃
- Corrosion resistance: 500hr salt spray test passed
- Weight: 1.85kg ±2%
- Dimensions: 148mm(L) × 92mm(W) × 64mm(H)
- Compliance: ISO 9001, RoHS
Precision-machined pivot bracket engineered for high moment load applications. Features dual reinforcement ribs and wear-resistant chromium coating on bearing surfaces. Includes integrated lubrication grooves for periodic maintenance. Compatible with Ø20mm shaft diameters (tolerance H7/g6 recommended).
- Robotic arm joint articulation systems
- CNC machine tool rotating assemblies
- Automated warehouse stacker cranes
- Heavy-duty conveyor pivot points
- Agricultural equipment steering linkages
Installation protocol:
Apply medium-strength thread locker (LOCTITE 243 recommended) on M8 fasteners.
Torque to 22-25N·m using crisscross pattern. Re-torque after 50 operational hours.
| Property | Property Value |
|---|---|
| sku | F-SE80TC |
