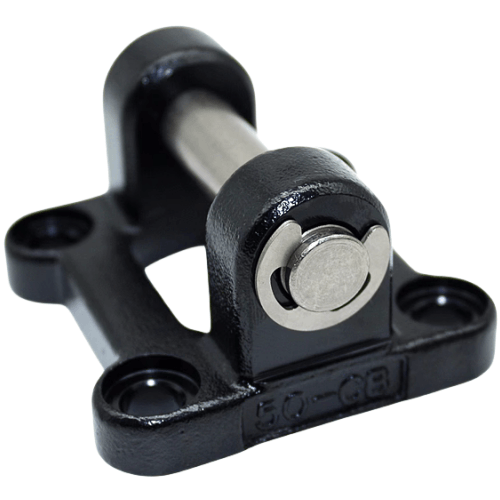

Airtac F-SG-CB Double Lug Bracket Assembly Kit F-SG250CB
AirTAC F-SG-CB Double Ear Mounting Bracket Kit F-SG250CB Technical Details
- Model: F-SG250CB
- Type: Pre-assembled mounting bracket kit with integrated hardware
- Material: Aluminum alloy (AL6061-T6)
- Surface treatment: Anodized black (12-15μm thickness)
- Compatible cylinder series: MAL/MAS/MAB 25mm bore size
- Mounting hole spacing: 25±0.1mm (center-to-center)
- Bolt specifications: M6×20mm (Grade 8.8 hex socket head cap screws included)
- Torque requirement: 20-25N·m (installation torque)
- Temperature resistance: -20℃ to 80℃
- Weight: 480g ±2% (including all mounting components)
- Dimensions: 250mm(L) × 52mm(W) × 38mm(H)
- Load capacity: Max 1,200N static load (axial direction)
- Vibration resistance: 5-2000Hz, 5G max (MIL-STD-810G compliant)
Precision-machined bilateral mounting solution designed for heavy-duty pneumatic cylinder stabilization. Features anti-corrosion anodization and pre-installed thread-locking adhesive on fasteners. Includes vibration-damping washers and alignment pins for precision machinery installations.
- Robotic arm joint actuators in automotive assembly lines
- Vertical lift mechanisms for material handling systems
- Vibration-sensitive semiconductor manufacturing equipment
- High-cycle packaging machinery with guided cylinder motion
- Plastic injection molding machine ejector units
Installation protocol:
Use calibrated torque wrench for bolt tightening. Apply supplemental
lubricant (ISO VG32 equivalent) on sliding surfaces before final alignment.
Perform concentricity check with 0.05mm tolerance gauge.
| Property | Property Value |
|---|---|
| sku | F-SG250CB |
