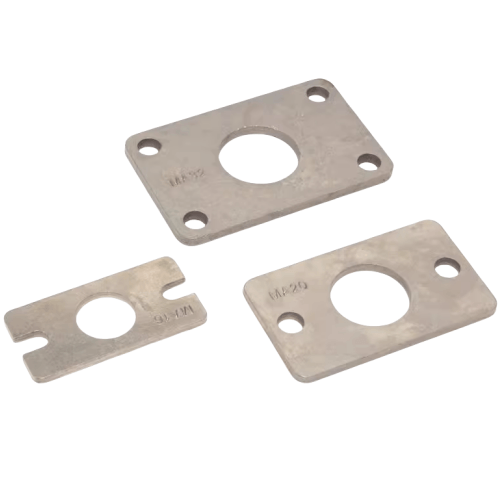

Airtac F-SG-FA Front Flange Mounting Plate Assembly F-SG250FA
Category: Cylinder Accessories
Brand: AIRTAC
Series: F-SG-FA
This professional-grade front flange mounting bracket assembly is engineered for robust and secure mounting of pneumatic cylinders in industrial automation systems. Featuring precision-machined components with ISO 6431/DIN ISO 15552 compliance, the complete kit ensures seamless integration with standard cylinder profiles. The hardened mounting surface provides vibration-resistant stability while the corrosion-resistant surface treatment enhances durability in harsh operating environments. Includes pre-assembled alignment guides and standardized fastening hardware for accelerated installation. Ideal for maintaining precise cylinder positioning in high-cycle automation equipment, robotic systems, and material handling applications.
AirTAC F-SG-FA Series Front Flange Mounting Plate Kit: F-SG250FA
- Model: F-SG250FA (Complete Kit)
- Compatible Cylinder Bore: Ø250mm
- Material: 6063-T5 Aluminum Alloy
- Surface Treatment: Black Anodized (12-15μm)
- Mounting Hole Pattern: 8×M12×1.75 Threads (Depth 18mm)
- Hole Spacing: 250mm × 250mm (±0.2mm Square Tolerance)
- Weight: 2.8kg (Including Fasteners)
- Dimensions: 280mm(L) × 80mm(W) × 20mm(H)
- Fastener Torque: 45-50N·m (M12 Hex Socket Head Cap Screws Included)
- Anti-Vibration: 4×Rubber Dampers (Shore A 70±5)
- Temperature Range: -40℃ to 150℃ (Static Load)
- Corrosion Resistance: 500hr Salt Spray Test Pass
Heavy-duty CNC-machined flange plate with integrated alignment pins and vibration dampers, designed for rigid mounting of large-bore pneumatic cylinders. Features precision counterbored holes for flush fastener installation and laser-etched orientation markers. Includes stainless steel fasteners pre-coated with molybdenum disulfide anti-seize compound.
- High-mass payload handling in automotive assembly jigs
- Vertical axis mounting for die-casting machine actuators
- Shock absorption in lumber processing equipment
- Precision alignment in semiconductor wafer handling robots
Installation Protocol:
Apply 0.03mm shim stock between mating surfaces before torqueing fasteners in cross pattern sequence.
Verify perpendicularity with 0.05mm/m tolerance using dial indicator.
| Property | Property Value |
|---|---|
| sku | F-SG250FA |
