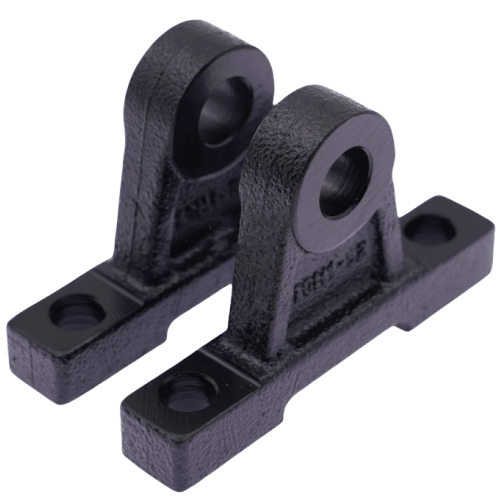

Airtac F-SG Trunnion Bracket Assembly Kit F-SG250TCM1
AirTAC F-SG250TCM1 Trunnion Bracket Complete Kit Specifications
- Model: F-SG250TCM1
- Type: Heavy-duty trunnion mount with integrated cushioning
- Compatible cylinder series: SG Series Ø250mm bore
- Max static load capacity: 18,000N (radial)
- Max dynamic load: 12,500N @ 0.5m/s
- Mounting hole pattern: 4×Ø22mm holes on 320×320mm PCD
- Base material: FC250 cast iron (JIS standard)
- Surface treatment: Electrophoretic coating (20-25μm)
- Bearing type: Double-row tapered roller bearings
- Temperature range: -30℃ to 120℃ (dry environment)
- Weight: 48.5kg ±2%
- Dimensions: 400mm(L) × 380mm(W) × 285mm(H)
- Torque resistance: 6,500Nm (static), 4,200Nm (dynamic)
- Vibration resistance: 5-200Hz @ 15m/s² max
Robust trunnion mounting solution engineered for high-moment applications in harsh industrial environments. Features precision-ground mounting surfaces (Ra 3.2μm) and corrosion-resistant ED coating. Includes pre-lubricated bearings with triple-lip seals for particulate protection. Requires torque wrench installation (recommended tightening torque: 280-320Nm).
- Rotary index tables in automotive welding lines
- Heavy press machine actuator supports
- Offshore platform hydraulic cylinder mounting
- Mining equipment boom articulation points
- High-cycle packaging machine pivot mechanisms
Maintenance note: Relubricate bearings every 2,000 operating hours using EP2 lithium grease.
Use dial indicator to verify ≤0.15mm runout during annual inspections. Avoid side-impact loads exceeding 15% of rated capacity.
| Property | Property Value |
|---|---|
| sku | F-SG250TCM1 |
