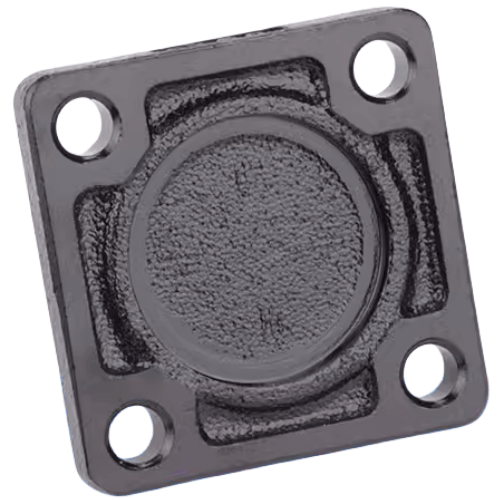

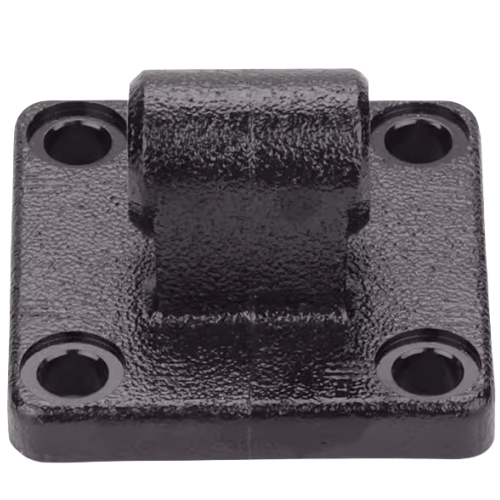

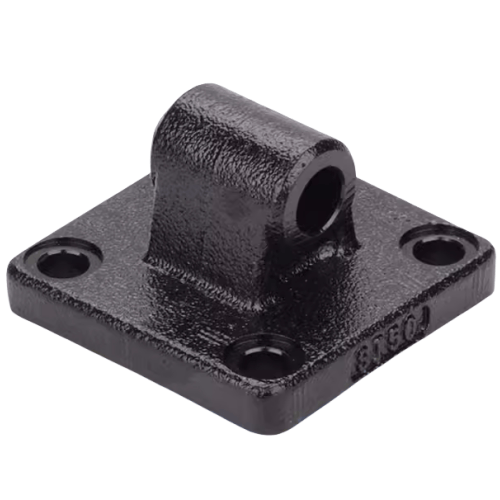

Airtac F-SI-CA Single Lug Bracket Assembly Kit F-SI100CA
$24.88
Regular price
$32.38
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-SI100CA
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Category: Cylinder Accessories
Brand: AirTAC
Series: F-SI-CA
**Single Lug Mounting Bracket Complete Assembly Kit**
Engineered for robust cylinder stabilization in pneumatic systems, this precision-machined aluminum alloy bracket features an anodized surface treatment for enhanced corrosion resistance. The single-lug design ensures rigid connections while maintaining angular adjustability for versatile installation compatibility.
**Key Specifications**
• Material: Aluminum Alloy (6063-T5)
• Surface Treatment: Anodized
• Mounting Style: Single Ear (Lateral Fixation)
• Load Capacity: Optimized for ISO/VDMA standard cylinder series
• Pre-assembled configuration with standard fasteners included
**Application**
Ideal for linear actuator installations requiring vibration-damped fixation in automation equipment, packaging machinery, and industrial robotics. The complete kit enables rapid deployment with ±2° axial compensation tolerance, ensuring parallel alignment for cylinder rod extensions.
**Compliance**
Manufactured under ISO 9001:2015 quality standards. Compatible with AirTAC SC/SU/SI series cylinders and industrial pneumatic equipment.
*Note: Includes M6 Class 8.8 mounting hardware and anti-loosening washers. Torque specifications: 12-14 N·m.*
Installation protocol:
Apply 24-28N·m torque using crisscross pattern during bolt tightening.
Use included shim spacers when mounting on surfaces with >Ra3.2 roughness.
Lubricate bolt threads with MOBILITH SHC 100 before installation in high-humidity environments.
AirTAC F-SI-CA Single Ear Fixing Bracket Kit F-SI100CA Technical Details
- Model: F-SI100CA (Complete Kit)
- Material: Aluminum alloy AL6061-T6
- Surface treatment: Anodized oxidation (Silver)
- Mounting hole spacing: 25±0.1mm (Standard for SI-100 series cylinders)
- Bolt hole diameter: 6.5mm (M6 compatible)
- Applicable cylinder bore: Ø100mm
- Bracket thickness: 12mm (Load-bearing section)
- Static load capacity: ≤500kg
- Dynamic load capacity: ≤200kg (At 0.5m/s vibration conditions)
- Operating temperature: -20℃ to +80℃
- Weight: 0.32kg ±5% (Including all mounting hardware)
- Dimensions: 100mm(L) × 50mm(W) × 25mm(H) (Main bracket body)
- Kit contents: 1x Bracket, 2x M6×20 Hex bolts, 2x M6 Flange nuts, 4x Ø6.5mm Shim spacers
- Corrosion resistance: 96hr salt spray test compliant
- Standard compliance: ISO 9001, GB/T 90.1-2002
Precision-machined mounting solution designed for SI series pneumatic cylinders, featuring anti-vibration grooves and dual reinforcement ribs. The elliptical base design distributes stress evenly while reducing overall weight. Includes pre-installed thread locking patches on bolts for secure assembly.
Industrial Applications:
- Robotic arm joint fixation in automotive welding lines
- Conveyor system cylinder mounting for packaging machinery
- Vertical actuator support in semiconductor handling equipment
- Modular fixture systems for CNC machine tool changers
- Vibration damping platform installations
Installation protocol:
Apply 24-28N·m torque using crisscross pattern during bolt tightening.
Use included shim spacers when mounting on surfaces with >Ra3.2 roughness.
Lubricate bolt threads with MOBILITH SHC 100 before installation in high-humidity environments.
| Property | Property Value |
|---|---|
| sku | F-SI100CA |
