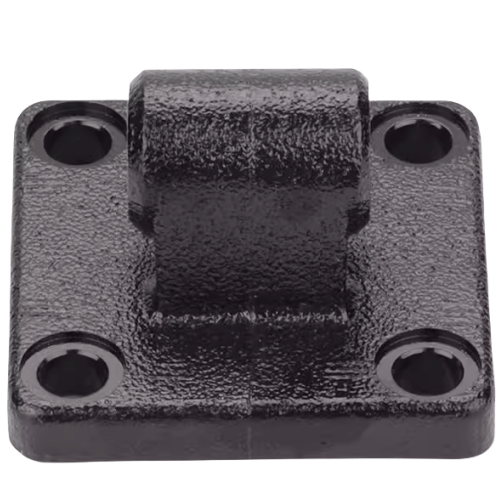

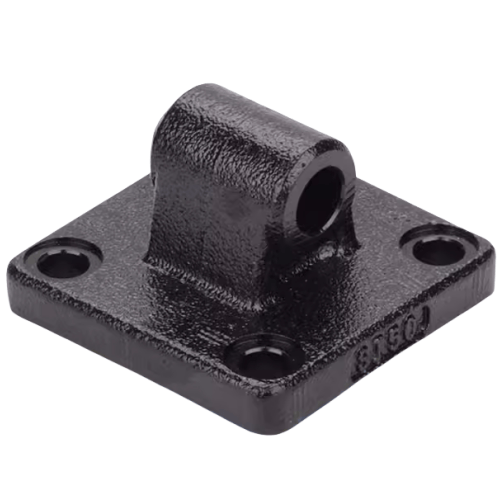

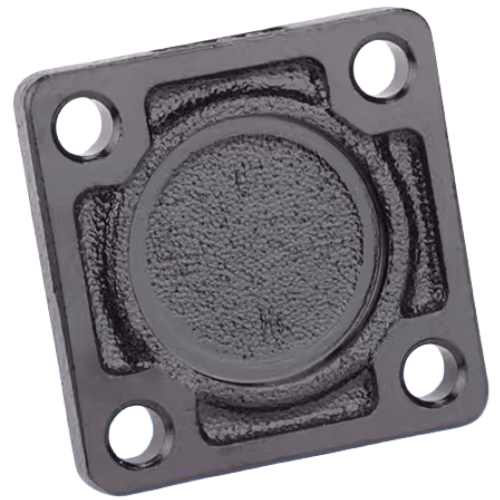

Airtac F-SI-CA Single Lug Bracket Assembly Kit F-SI160CA
AirTAC F-SI-CA Single Ear Bracket Kit F-SI160CA Technical Details
- Model: F-SI160CA (Complete Bracket Package)
- Type: Single ear mounting bracket with pre-assembled hardware
- Material: Carbon steel with zinc-nickel composite plating
- Static Load Capacity: ≤300kg (662 lbs)
- Mounting Hole Spacing: 160±0.2mm (center-to-center)
- Surface Treatment: Electroplated (8-12μm thickness)
- Rod Diameter Compatibility: Φ12-25mm cylinders
- Operating Temperature: -30℃ to 120℃
- Vibration Resistance: ≤50m/s² (with secure fastening)
- Weight: 485g ±5% (including mounting bolts)
- Dimensions: 160mm(L) × 40mm(W) × 20mm(H)
- Corrosion Resistance: 96h salt spray test passed
- Package Contents: Bracket ×1, M8×25 Hex Bolt ×2, Spring Washer ×2, Flat Washer ×2
Heavy-duty single ear mounting solution designed for precise alignment and vibration damping in dynamic pneumatic systems. Features triple-layer anti-corrosion coating and precision-machined mounting surfaces (Ra≤3.2μm) for optimal component contact. Pre-installed 8.8-grade high-tensile bolts ensure secure mounting without thread damage.
- Industrial robot end-effector cylinder mounting
- Packaging machine vertical actuator stabilization
- CNC tool changer pneumatic arm support
- Automated assembly line sliding mechanisms
- Material handling system shock absorption
Mounting protocol:
Apply 20-30N·m torque using calibrated wrench. Use thread-locking compound
(LOCTITE 243 recommended) for high-vibration environments. Perform alignment
check with 0.02mm feeler gauge during installation.
| Property | Property Value |
|---|---|
| sku | F-SI160CA |
