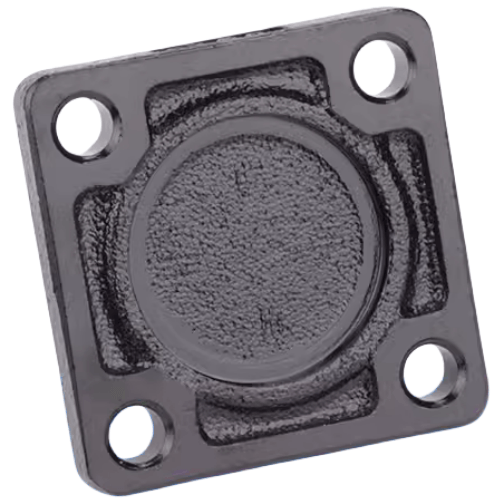

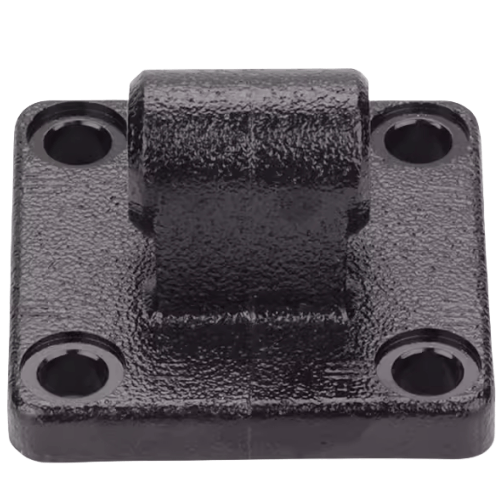

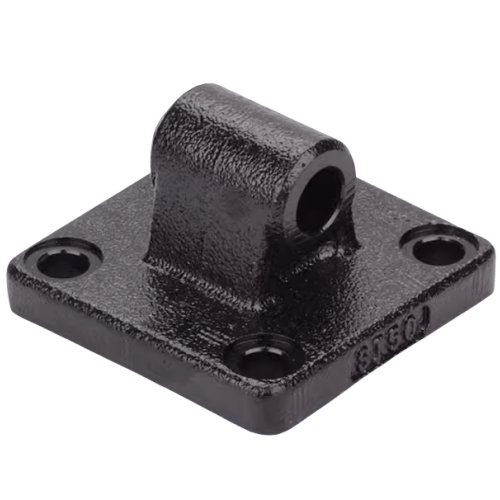

Airtac F-SI-CA Single Lug Bracket Assembly Kit F-SI50CA
$11.59
Regular price
$19.09
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-SI50CA
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Category: Cylinder Accessories
Brand: AirTAC
Series: F-SI-CA
**Single Lug Mounting Bracket Complete Assembly Kit**
Engineered for robust cylinder stabilization in pneumatic systems, this precision-machined aluminum alloy bracket features an anodized surface treatment for enhanced corrosion resistance. The single-lug design ensures rigid connections while maintaining angular adjustability for versatile installation compatibility.
**Key Specifications**
• Material: Aluminum Alloy (6063-T5)
• Surface Treatment: Anodized
• Mounting Style: Single Ear (Lateral Fixation)
• Load Capacity: Optimized for ISO/VDMA standard cylinder series
• Pre-assembled configuration with standard fasteners included
**Application**
Ideal for linear actuator installations requiring vibration-damped fixation in automation equipment, packaging machinery, and industrial robotics. The complete kit enables rapid deployment with ±2° axial compensation tolerance, ensuring parallel alignment for cylinder rod extensions.
**Compliance**
Manufactured under ISO 9001:2015 quality standards. Compatible with AirTAC SC/SU/SI series cylinders and industrial pneumatic equipment.
*Note: Includes M6 Class 8.8 mounting hardware and anti-loosening washers. Torque specifications: 12-14 N·m.*
Maintenance Note:
Inspect bracket-to-cylinder interface every 2,000 operating hours. Replace rubber pad if compression exceeds 15%
of original thickness. Never modify mounting holes - use only M8 fasteners with 12.9 grade hardness.
AirTAC F-SI-CA Single Ear Mounting Bracket Kit F-SI50CA Technical Details
- Model: F-SI50CA (Complete Kit)
- Type: Single-flange reinforced mounting bracket
- Material: Aluminum alloy ADC12 with hard anodizing
- Compatible Cylinder Bore: ø50mm series
- Mounting Hole Specifications: 2×M8×1.25 threaded holes (depth 15mm)
- Center Distance: 76mm between mounting holes (±0.2mm tolerance)
- Surface Hardness: HV400-450 (anodized layer 15-25μm)
- Temperature Resistance: -20℃ to 120℃ (continuous operation)
- Static Load Capacity: 1,800N radial / 2,200N axial
- Dynamic Load Rating: 600N @ 1Hz cyclic loading
- Weight: 540g ±2% (including all mounting hardware)
- Dimensions: 98mm(L) × 62mm(W) × 34mm(H)
- Kit Contents: Bracket body, 2×M8×25 hex socket screws, 2×M8 flat washers, anti-vibration rubber pad
Heavy-duty mounting solution designed for AIRTAC SC/SU series cylinders, featuring precision-machined locating surfaces (Ra1.6 finish) for vibration-damped installation. The asymmetric ear design allows flexible orientation in confined spaces. Includes corrosion-resistant hardware compliant with ISO 10683 standards.
Installation Guidelines:
- Torque specification: 24-28N·m for M8 mounting screws using calibrated tool
- Requires flat mounting surface with ≤0.1mm/mm flatness
- Apply thread locker (medium strength) on clean, dry threads
- Align cylinder axis within ±0.5° of bracket centerline
Typical Use Cases:
- Robotic welding arm pivot mounts
- Packaging line cylinder installations with side loads
- Plastic injection molding machine ejector mechanisms
- Material handling systems with frequent start-stop cycles
Maintenance Note:
Inspect bracket-to-cylinder interface every 2,000 operating hours. Replace rubber pad if compression exceeds 15%
of original thickness. Never modify mounting holes - use only M8 fasteners with 12.9 grade hardness.
| Property | Property Value |
|---|---|
| sku | F-SI50CA |
