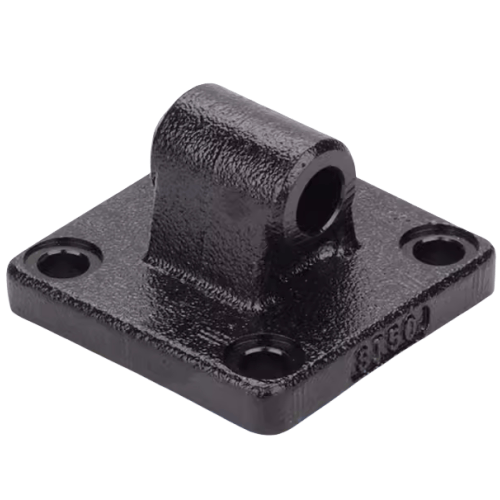

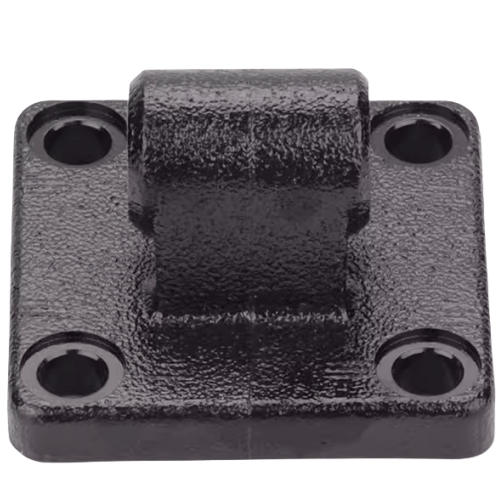

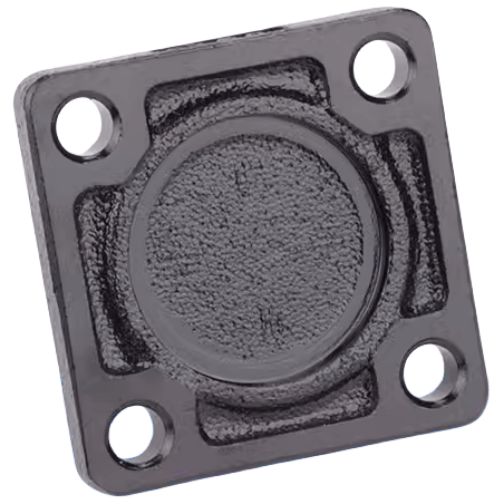

Airtac F-SI-CA Single Lug Bracket Assembly Kit F-SI80CA
AirTAC F-SI-CA Single-Ear Mounting Bracket Kit F-SI80CA Technical Details
- Model: F-SI80CA (Complete Assembly Kit)
- Bracket type: Single-ear fixed mounting bracket
- Material: High-grade carbon steel (S45C)
- Surface treatment: Black electrophoretic coating
- Mounting hole size: M8 threaded hole
- Bolt torque capacity: 14.7-19.6 N·m
- Compatible cylinder series: SC/SU/SI 80mm bore size
- Vibration resistance: ≤10 m/s² (ISO 10816-3)
- Static load capacity: 980 N (vertical direction)
- Temperature range: -20℃ to 120℃
- Corrosion resistance: 96hrs salt spray test passed
- Weight: 0.45 kg ±2%
- Dimensions: 98mm(L) × 62mm(W) × 28mm(H)
Heavy-duty mounting solution for precise cylinder alignment, featuring anti-loosening design with integrated lock washers. The optimized stress distribution structure ensures stable positioning under high cyclic loads. Includes pre-assembled mounting hardware (M8×25 hex socket bolts, spring washers, and flat washers) for immediate installation.
- Pneumatic cylinder mounting in automated assembly lines
- Robotic arm joint stabilization systems
- Packaging machinery linear actuator installations
- Material handling equipment structural reinforcement
- Industrial press counterbalance mechanisms
Installation protocol:
Ensure mounting surface flatness ≤0.1mm/mm². Use torque wrench for bolt tightening
following specified values. Apply thread-locking compound (medium strength)
for high-vibration environments. Avoid galvanic corrosion by using compatible
fastener materials when mounting on dissimilar metals.
