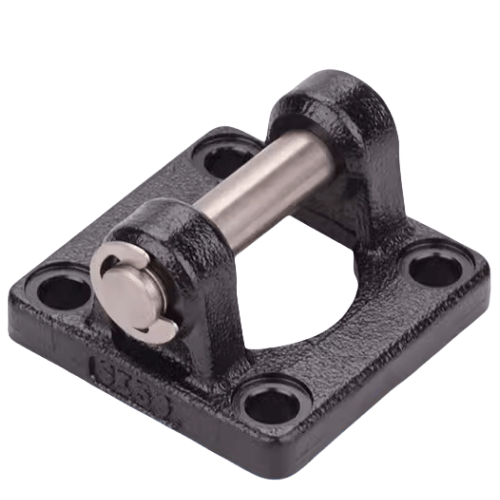

Airtac F-SI-CB Double Lug Bracket Assembly Kit F-SI100CB
AirTAC F-SI-CB Double Ear Mounting Bracket Kit F-SI100CB Technical Details
- Model: F-SI100CB (Complete Bracket Package)
- Type: Universal cylinder mounting bracket
- Material: Aluminum alloy ADC12
- Surface treatment: Anodized (Black/Silver optional)
- Weight: 0.35kg ±2%
- Dimensions: 100mm(L) × 50mm(W) × 25mm(H)
- Compatible cylinder series: SDA/SI/SD/SDG 100mm bore size
- Mounting hole spacing: 80mm ±0.2mm (center-to-center)
- Fastener grade: Class 8.8 steel bolts included
- Temperature resistance: -20℃ to 120℃
- Static load capacity: 1,200N (axial direction)
- Vibration resistance: ≤15Hz @ 2mm amplitude
Precision-engineered bilateral support bracket featuring CNC-machined alignment grooves and reinforced rib design. Includes pre-installed shock-absorbing washers and anti-loosening nuts. Compatible with ISO 15552 standard cylinders, enables stable linear motion transmission while minimizing axis deflection.
- Industrial automation: Robotic arm end effectors
- Packaging lines: Vertical lifting mechanisms
- Assembly systems: Precision-guided sliding units
- Special use: Vibration-prone environments requiring reinforced mounting
Mounting protocol:
Apply 24-28N·m torque using calibrated wrench. Always install
with paired brackets (2 required per cylinder). Lubricate
sliding surfaces with ISO VG32 hydraulic oil before operation.
