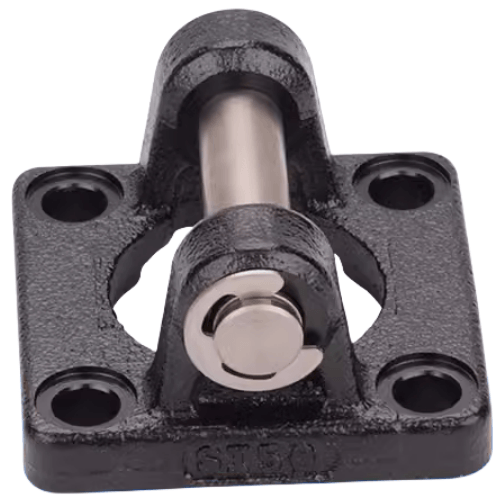

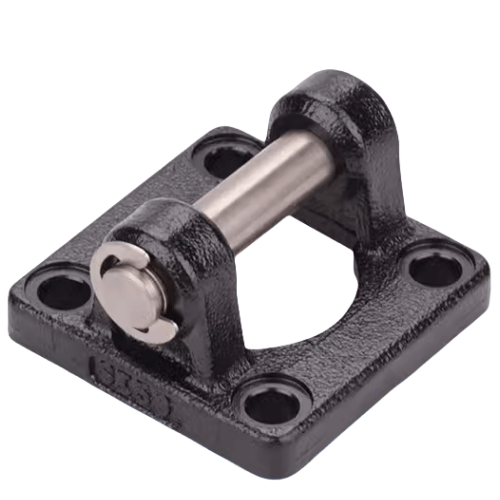

Airtac F-SI-CB Double Lug Bracket Assembly Kit F-SI160CB
AirTAC F-SI-CB Double Ear Fixing Bracket Kit (F-SI160CB) Specifications
- Model: F-SI160CB
- Type: Universal double-ear mounting bracket kit
- Material: Aluminum alloy (6063-T5 grade)
- Surface treatment: Anodized oxidation (black)
- Bolt hole specifications: M8 x 4 holes (2 per ear)
- Center distance between ears: 160±0.3mm
- Load capacity: Max 1,200N static load
- Temperature resistance: -40℃ to 150℃
- Weight: 1.28kg (including fasteners)
- Dimensions: 180mm(L) × 58mm(W) × 32mm(H)
- Included components: Bracket body, M8x25 hex bolts (4pcs), M8 spring washers (4pcs), M8 flat washers (8pcs)
Heavy-duty universal mounting solution designed for cylinder fixation in industrial automation systems. Features precision-machined symmetrical ears with reinforced rib structure, providing vibration dampening and thermal stability. Compatible with ISO 15552 standard cylinders and most pneumatic actuators.
- Pneumatic cylinder mounting in assembly line conveyors
- Robotic arm joint stabilization
- Packaging machinery actuator fixation
- CNC machine tool pneumatic component installation
- Material handling equipment structural support
Installation guidelines:
Use torque wrench (recommended 25-30N·m for M8 bolts) and apply thread-locking compound.
Ensure parallel alignment between bracket and cylinder axis (±0.2mm tolerance).
Perform torque check after 48 hours of initial operation.
- AirTAC SI series cylinder bodies
- AXD/FMD-type cylinder mounting kits
- Standard 8.8-grade metric fasteners
| Property | Property Value |
|---|---|
| sku | F-SI160CB |
