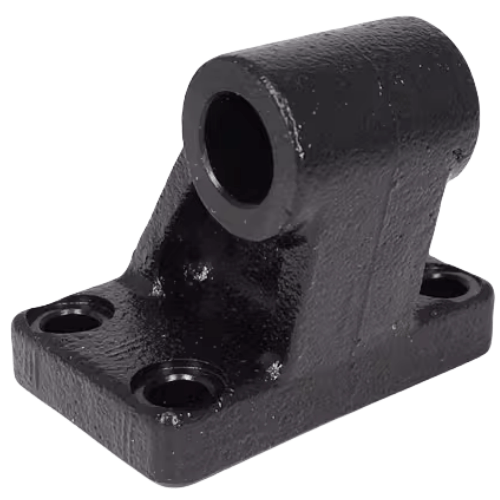

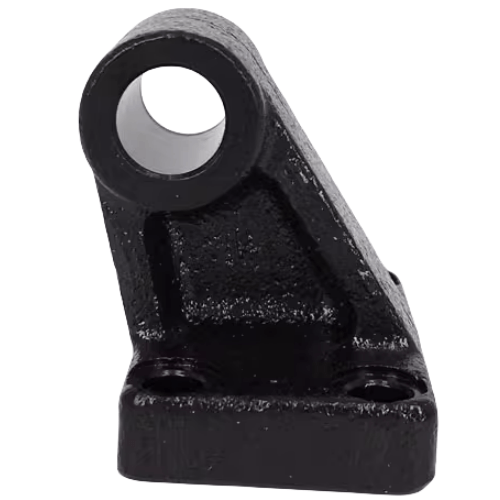

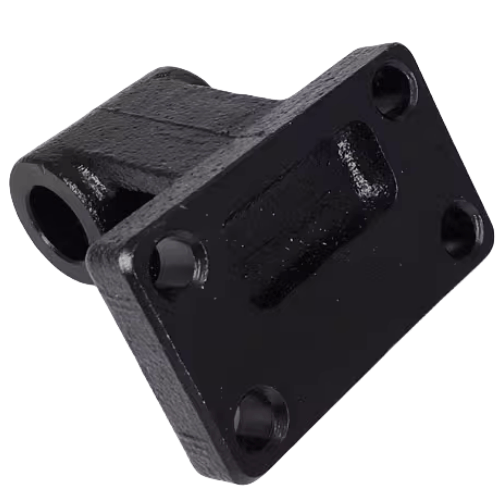

Airtac F-SI-CR Single Lug Mounting Bracket Assembly F-SI100CR
Category: Cylinder Accessories
Brand: AirTAC
Series: F-SI-CR Single Lug Bracket Finished Assembly Kit
Ready-to-install mounting bracket assembly for cylinder applications. Engineered with high-rigidity materials for secure positioning and vibration resistance in pneumatic systems. Precision alignment ensures optimal cylinder performance, while pre-drilled mounting holes comply with ISO/VDMA standards. Includes pre-assembled components (bracket, fasteners, and alignment pins) to streamline maintenance and retrofitting processes.
AirTAC F-SI-CR Single Ear Fixing Bracket Kit F-SI100CR Specifications
- Model: F-SI100CR
- Type: Single ear mounting bracket kit (pre-assembled)
- Material: Aluminum alloy 6063-T5
- Surface treatment: Anodized (black)
- Bracket length: 100mm ±0.2mm
- Mounting hole spacing: 100mm (center-to-center)
- Hole specifications: 2×φ5.5mm through holes (M5/M6 compatible)
- Load capacity: Max 150N lateral force / 300N axial force
- Operating temperature: -40℃ to 120℃
- Protection rating: IP54 (standard assembly)
- Weight: 0.25kg (including fasteners)
- Dimensions: 100mm(L) × 20mm(W) × 15mm(H)
- Included components: Bracket body, 2×M5x12 hex socket screws, 2×spring washers, 2×flat washers
- Certification: ISO 9001, RoHS compliant
Robust single-point mounting solution designed for pneumatic cylinder installations. Features precision-machined alignment grooves and dual anti-vibration washers for stable load distribution. The anodized surface resists chemical corrosion in harsh environments.
- Pneumatic cylinder mounting in automated assembly lines
- Linear actuator support in packaging machinery
- Sensor bracket for robotic arm end effectors
- Vibration-sensitive measurement equipment mounting
- Medical device actuator stabilization
Installation guidelines:
Clean mounting surface before installation. Use torque wrench (recommended 4.5-5.5N·m for M5 screws).
Apply thread locker for high-vibration environments. Avoid angular misalignment exceeding ±2° during mounting.
| Property | Property Value |
|---|---|
| sku | F-SI100CR |
