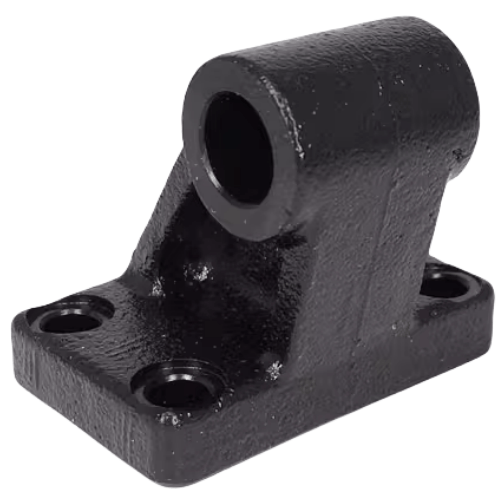

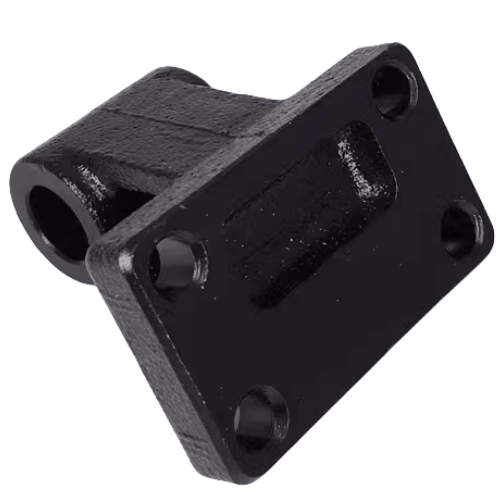

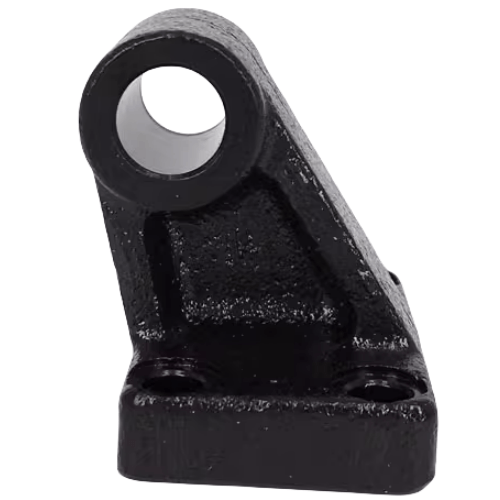

Airtac F-SI-CR Single Lug Mounting Bracket Assembly F-SI125CR
Category: Cylinder Accessories
Brand: AirTAC
Series: F-SI-CR Single Lug Bracket Finished Assembly Kit
Ready-to-install mounting bracket assembly for cylinder applications. Engineered with high-rigidity materials for secure positioning and vibration resistance in pneumatic systems. Precision alignment ensures optimal cylinder performance, while pre-drilled mounting holes comply with ISO/VDMA standards. Includes pre-assembled components (bracket, fasteners, and alignment pins) to streamline maintenance and retrofitting processes.
AirTAC F-SI-CR Single Ear Bracket Kit F-SI125CR Technical Details
- Model: F-SI125CR (Complete Bracket Package)
- Type: Standard single-ear mounting bracket with integrated hardware
- Material: Aluminum alloy 6063-T5
- Surface treatment: Anodized (Silver) + chromate plating on fasteners
- Mounting hole spacing: 125±0.2mm (center-to-center)
- Compatible cylinder series: SC/SU/SD 32-100mm bore sizes
- Static load capacity: 1,500N (axial direction)
- Dynamic load capacity: 800N @ 0.5m/s
- Fastener grade: Class 8.8 steel bolts with anti-loosening patches
- Temperature range: -40℃ to 120℃ (bracket), -20℃ to 80℃ (fasteners)
- Corrosion resistance: 500hr salt spray test passed (ISO 9227)
- Weight: 980g ±2% (including all mounting components)
- Dimensions: 162mm(L) × 48mm(W) × 28mm(H)
- Package contents: Bracket body ×1, M8×25 hex bolt ×2, M8 flat washer ×2, M8 spring washer ×2
Heavy-duty aluminum mounting solution designed for stable cylinder fixation in high-vibration environments. Features precision-machined locating surfaces (Ra 3.2μm) and military-grade fasteners with permanent lubrication coating. The asymmetrical ear design allows ±5° angular adjustment during installation.
- Pneumatic press vertical cylinder mounting
- Assembly line robotic arm base fixation
- Packaging machinery rotary actuator support
- CNC tool changer positioning brackets
- Marine equipment pneumatic system installations
Installation protocol:
Apply 20-25N·m torque using calibrated wrench during bolt tightening.
Use Shim Kit F-SHIM125 (sold separately) when mounting on uneven surfaces >0.5mm.
| Property | Property Value |
|---|---|
| sku | F-SI125CR |
