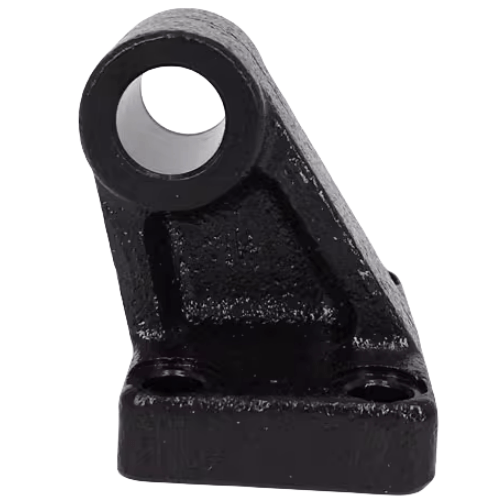

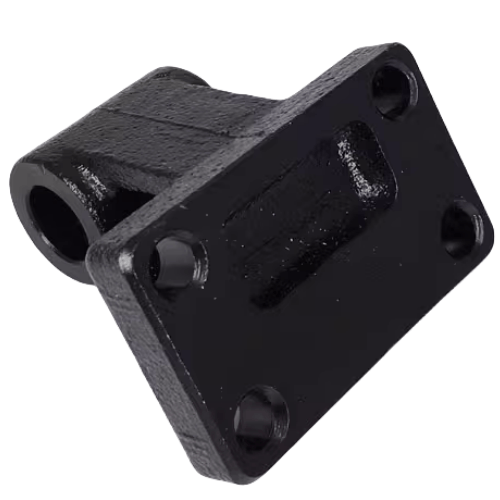

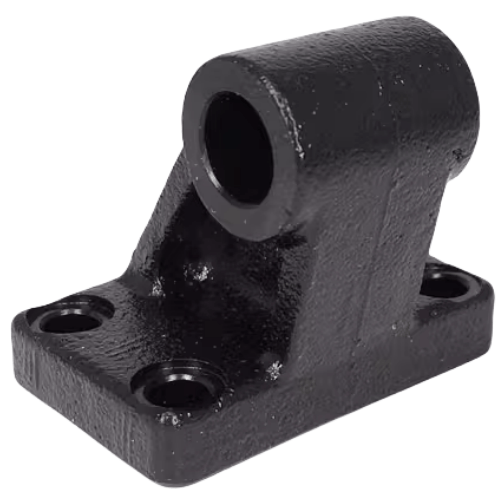

Airtac F-SI-CR Single Lug Mounting Bracket Assembly F-SI160CR
Category: Cylinder Accessories
Brand: AirTAC
Series: F-SI-CR Single Lug Bracket Finished Assembly Kit
Ready-to-install mounting bracket assembly for cylinder applications. Engineered with high-rigidity materials for secure positioning and vibration resistance in pneumatic systems. Precision alignment ensures optimal cylinder performance, while pre-drilled mounting holes comply with ISO/VDMA standards. Includes pre-assembled components (bracket, fasteners, and alignment pins) to streamline maintenance and retrofitting processes.
AirTAC F-SI-CR Single Ear Bracket Kit F-SI160CR Technical Details
- Model: F-SI160CR (Complete Kit)
- Material: Aluminum alloy AL6063-T5 with black anodized finish
- Mounting Hole Spacing: 160±0.2mm (center-to-center)
- Bolt Specification: M10×1.5 class 8.8 hex socket head
- Compatible Cylinder Series: SI 160mm bore size models (e.g., SI 160×200~500)
- Surface Hardness: HV 400-450
- Static Load Capacity: ≤4,500N (axial direction)
- Dynamic Load Capacity: ≤2,200N (axial direction)
- Weight: 1.65kg ±2% (including fasteners)
- Dimensions: 162mm(L) × 42mm(W) × 34mm(H)
- Operating Temp Range: -20°C to +120°C
- Corrosion Resistance: 96hrs salt spray test passed
- Included Components: Bracket body ×1, M10×25mm cap screws ×2, flat washers ×2, spring washers ×2
Heavy-duty single ear mounting solution designed for precise alignment and vibration damping in high-cycle pneumatic systems. Features CNC-machined contact surfaces (Ra≤3.2μm) and anti-loosening dual washer configuration. The offset ear design allows 5° angular adjustment during installation.
- Industrial robot end-effector mounting
- Plastic injection molding machine clamp cylinders
- Automated material handling systems
- Press machine slide unit stabilization
- Packaging line rotary actuator support
Installation protocol:
Apply 25-30N·m torque using calibrated wrench. Use alignment gauge (PN: AG-160CR)
for parallel installation verification. Re-torque after 50 operating hours.
| Property | Property Value |
|---|---|
| sku | F-SI160CR |
