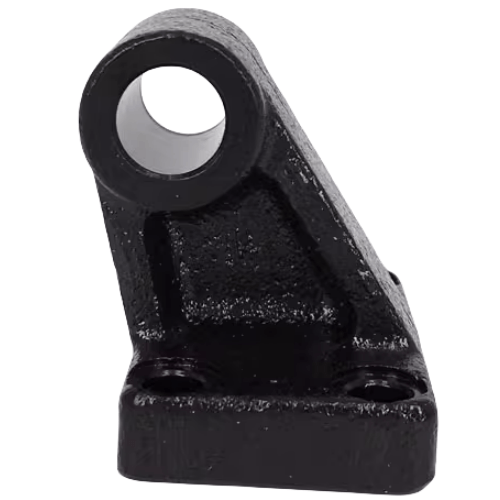

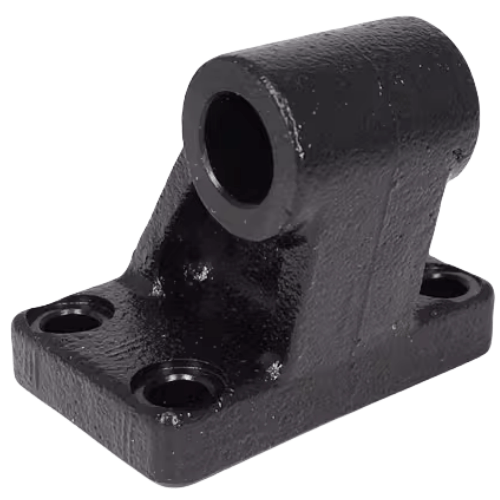

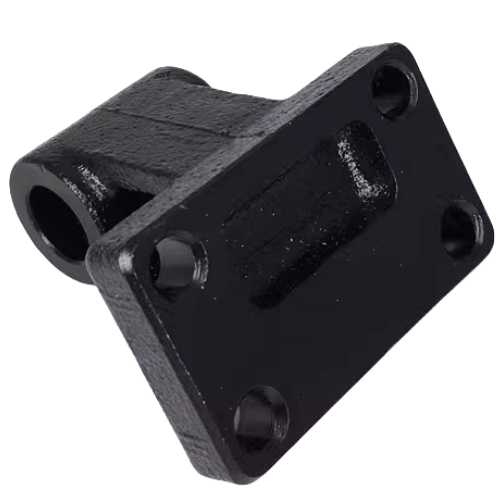

Airtac F-SI-CR Single Lug Mounting Bracket Assembly F-SI200CR
Category: Cylinder Accessories
Brand: AirTAC
Series: F-SI-CR Single Lug Bracket Finished Assembly Kit
Ready-to-install mounting bracket assembly for cylinder applications. Engineered with high-rigidity materials for secure positioning and vibration resistance in pneumatic systems. Precision alignment ensures optimal cylinder performance, while pre-drilled mounting holes comply with ISO/VDMA standards. Includes pre-assembled components (bracket, fasteners, and alignment pins) to streamline maintenance and retrofitting processes.
AirTAC F-SI-CR Single Ear Bracket Kit F-SI200CR Technical Details
- Model: F-SI200CR
- Type: Single ear mounting bracket kit with pre-assembled components
- Material: Aluminum alloy AL6061-T6 (anodized treatment)
- Surface hardness: HV 400±20
- Load capacity: Max 1,200N static load
- Mounting hole diameter: φ12.5mm (with M12 bolt compatibility)
- Bracket thickness: 10mm±0.2
- Weight: 385g±5g
- Dimensions: 200mm(L) × 45mm(W) × 28mm(H)
- Temperature resistance: -30℃ to 120℃
- Surface finish: Sandblasting + Black anodization (Class AA15)
- Corrosion resistance: 96hr salt spray test qualified
- Included components: Bracket body, M12×1.25 lock nut, φ12.5mm steel bushing, anti-vibration washer
Heavy-duty single ear mounting solution designed for pneumatic cylinder fixation in high-vibration environments. Features precision-machined alignment surfaces and integrated vibration damping components. The anodized surface provides exceptional wear resistance against particulate abrasion in industrial settings.
- Pneumatic actuator mounting in automated assembly lines
- Vibration isolation for servo-pneumatic systems
- Robotic arm joint reinforcement structures
- Material handling equipment frame connections
- Packaging machinery shock absorption setups
- Semiconductor manufacturing equipment mounts
Installation protocol:
Apply 25-30N·m torque during M12 bolt fastening. Use included steel bushing
to prevent aluminum thread galling. Perform alignment check with 0.02mm
feeler gauge between mating surfaces. Not recommended for lateral impact loads
exceeding 500N.
