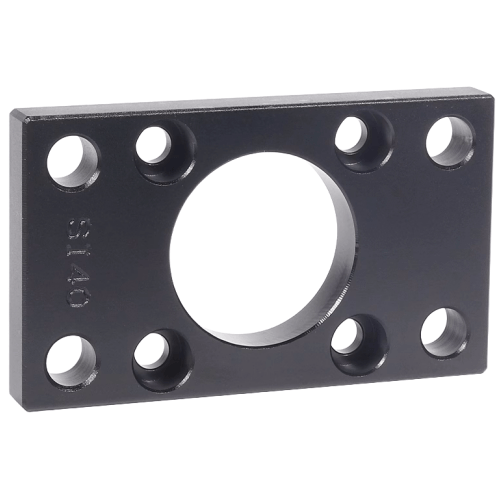

Airtac F-SI-FA Front Flange Mounting Plate Assembly F-SI100FA
AirTAC F-SI-FA Front Flange Mounting Plate Kit F-SI100FA Technical Details
- Full model designation: F-SI100FA (Standard Industrial Series)
- Construction material: 6063-T5 aluminum alloy
- Mounting hole pattern: ISO 15552 standard compatible
- Bore compatibility: Designed for φ32-100mm cylinders
- Surface treatment: Hard anodized (25μm thickness)
- Mounting torque: 12-15 N·m (M6 screws included)
- Temperature resistance: -20℃ to 120℃ (continuous operation)
- Weight: 0.48kg ±2% (including hardware)
- Dimensions: 100mm(L) × 80mm(W) × 20mm(H)
- Parallelism tolerance: ≤0.05mm/m
- Flatness: ≤0.1mm across mounting surface
- Corrosion rating: 500hr salt spray test passed
Precision-machined mounting solution for cylinder stabilization in high-cycle applications. Features diamond-knurled anti-rotation surfaces and through-hardened threaded inserts (Stainless Steel SUS304) for repeated assembly. Includes vibration-resistant flange screws with Loctite® pre-applied.
- Multi-axis robotic arm base mounting
- Pneumatic press vertical guidance systems
- Packaging line cylinder clusters
- Semiconductor handling equipment
- Automated welding jig positioning
Installation protocol:
Apply 2-3Nm initial torque for alignment before final tightening.
Use M6 spring washers (not included) for vibration-prone environments.
Maximum permissible side load: 150N (static), 80N (dynamic).
