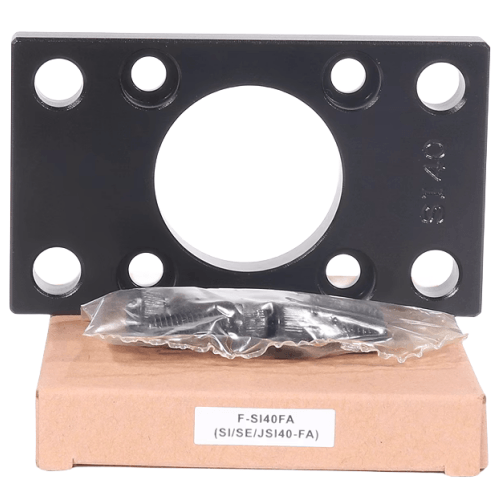

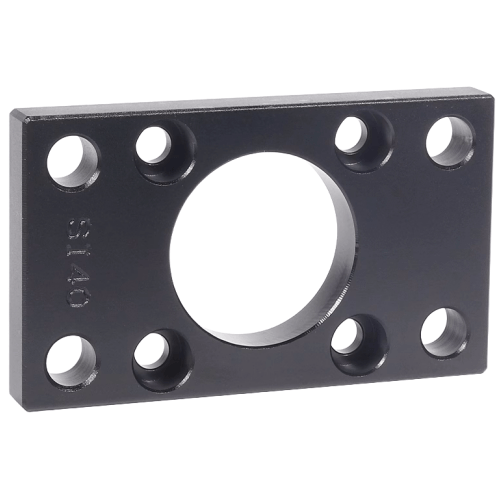

Airtac F-SI-FA Front Flange Mounting Plate Assembly F-SI125FA
AirTAC F-SI-FA Series Front Flange Mounting Plate Kit: F-SI125FA
- Model: F-SI125FA (Complete Set with Hardware)
- Compatible Cylinder Series: SI 125mm Bore Size
- Material: Aluminum Alloy 6063-T5
- Mounting Pattern: ISO 15552 Standard (DIN/VDMA 24562)
- Mounting Hole Spacing: 160mm × 160mm (±0.1mm)
- Bolt Specifications: M8 × 1.25 Stainless Steel (4 pcs included)
- Static Load Capacity: 3,200N (Vertical Mounting)
- Dynamic Load Capacity: 1,800N (Lateral Force)
- Surface Treatment: Anodized (Black, 15-20μm thickness)
- Operating Temperature: -20℃ to 120℃
- Vibration Resistance: ≤10Hz @ 2mm amplitude
- Weight: 2.45kg (5.4 lbs) including fasteners
- Dimensions: 180mm(W) × 180mm(D) × 22mm(H)
- Flange Thickness: 15mm (Reinforced Rib Design)
- Alignment Tolerance: ±0.05mm Bore Centering
High-precision mounting solution for heavy-duty cylinder stabilization, featuring anti-corrosion coating and CNC-machined alignment surfaces. The pre-drilled T-slot design allows multi-position adjustment while maintaining ISO-standard dimensional accuracy. Includes vibration-resistant Loctite-treated fasteners.
- Palletizing robot base mounting systems
- Plastic injection molding machine ejectors
- Automotive welding fixture positioning
- High-cycle packaging equipment actuators
- Semiconductor handling vacuum cylinder support
Installation note:
Apply 25-30N·m torque using calibrated wrench during assembly.
Use shim washers when mounting on uneven surfaces (>0.2mm variance).
Compatible with M8 hydraulic studs (max 150mm length) for vertical installations.
