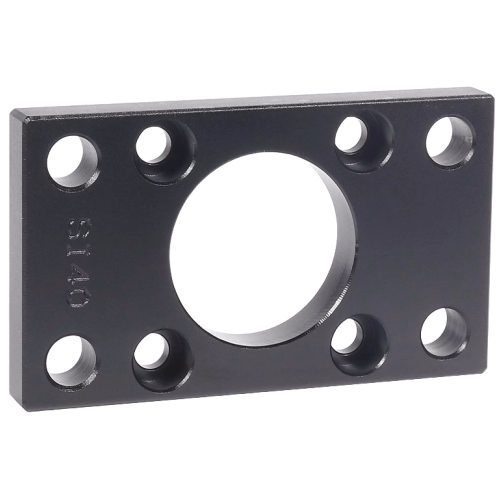

Airtac F-SI-FA Front Flange Mounting Plate Assembly F-SI40FA
AirTAC F-SI-FA Front Flange Mounting Plate Kit F-SI40FA Technical Details
- Model: F-SI40FA

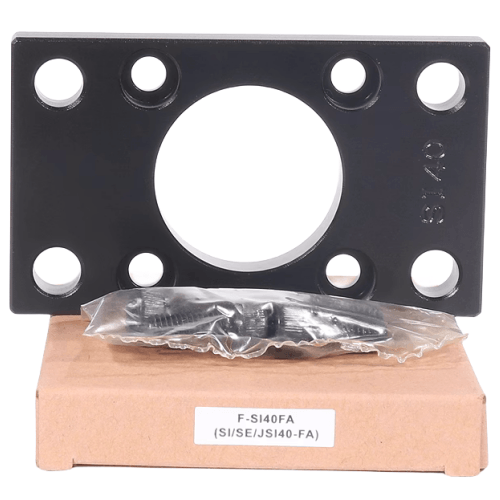

- Type: Front flange mounting plate complete kit
- Material: 6063-T5 aluminum alloy (hard anodized)
- Mounting hole pattern: ISO 15552 (VDMA 24562) standard
- Compatible cylinder series: SC/SU/SD 40mm bore size
- Surface treatment: Black anodized (15-20μm thickness)
- Corrosion resistance: 500hr salt spray test passed
- Operating temperature: -20°C to 100°C
- Weight: 0.85kg ±2%
- Dimensions: 120mm(L) × 80mm(W) × 20mm(H)
- Mounting screw specification: M6×12mm (Class 8.8 included)
- Parallelism tolerance: ≤0.05mm/m
Precision-machined mounting solution featuring integrated vibration dampening and alignment guides. The through-hole design allows easy cable/pipe routing, while the hardened mounting surface ensures stable cylinder positioning. Includes pre-installed mounting hardware with anti-loosening thread locker.
- Multi-axis pneumatic actuator assemblies
- Packaging machine vertical lift mechanisms
- Automated material handling systems
- Robotic end-effector mounting platforms
- Semiconductor wafer handling equipment
Installation advice:
Apply 2.5-3.5Nm torque during screw tightening. Use included shim washers
when mounting on uneven surfaces (>0.1mm irregularity). Clean mounting
surface with isopropyl alcohol before assembly.
| Property | Property Value |
|---|---|
| sku | F-SI40FA |
