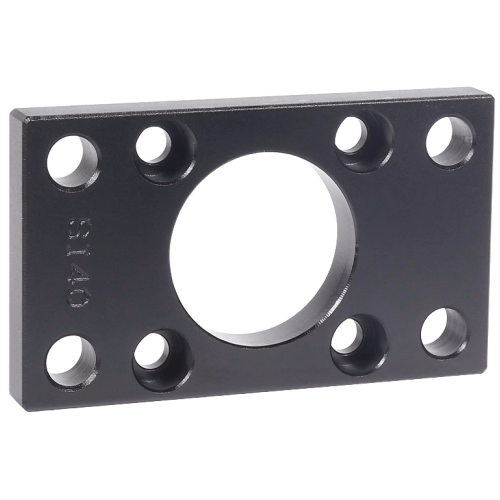

Airtac F-SI-FA Front Flange Mounting Plate Assembly F-SI63FA
AirTAC F-SI-FA Front Flange Mounting Plate Kit F-SI63FA Technical Details
- Model Code: F-SI63FA
- Series: F-SI-FA Standard Mounting Bracket Series
- Compatible Cylinder Bore: ø63mm
- Material: Aluminum alloy ADC12
- Surface Treatment: Anodized (natural aluminum color)
- Mounting Hole Pattern: 4×M6 threaded holes
- Hole Spacing: 50mm×50mm (square pattern)
- Plate Thickness: 12mm
- Static Load Capacity: ≤1,200N
- Dynamic Load Capacity: ≤800N @ 0.5m/s
- Weight: 0.48kg ±5%
- Dimensions: 63mm(L) × 63mm(W) × 20mm(H)
- Operating Temp Range: -20℃ to 80℃
- Corrosion Resistance: 96hr salt spray test passed
- Included Hardware: 4×M6×20mm Hex Socket Cap Screws (ISO 4762)
Precision-machined mounting solution designed for rigid cylinder fixation in high-vibration environments. Features counterbored screw holes for flush hardware installation and dual sealing surfaces (front/rear) for optional gasket integration. The asymmetric rib design enhances structural integrity while minimizing weight.
- Pneumatic cylinder mounting in automated assembly lines
- Robotic arm joint actuators
- Vertical lift mechanisms in material handling systems
- Vibration-prone environments like CNC tool changers
- Multi-axis positioning stages requiring precise alignment
Installation protocol:
Apply 8-12Nm torque using calibrated tool during assembly. Clean mounting surfaces with isopropyl alcohol before installation. For angular load applications, use supplementary support brackets (sold separately).
