Airtac F-SI-FA Front Flange Mounting Plate Assembly F-SI80FA
AirTAC F-SI-FA Front Flange Mounting Plate Kit F-SI80FA Technical Details
- Model designation: F-SI80FA (Complete assembly kit)
- Material: Anodized aluminum alloy 6063-T5
- Surface treatment: Hard oxidation (15-25μm thickness)
- Compatible cylinder series: SI standard series Ø80mm bore
- Mounting pattern: ISO 15552 front flange standard
- Mounting hole specifications: 4×M8×1.25 threaded holes (depth 12mm)
- Center bore diameter: Ø82.5mm (+0.2/-0 mm tolerance)
- Static load capacity: 2,500N (axial), 1,800N (radial)
- Fastener torque: 25-30N·m (M8 bolts, lubricated)
- Weight: 1.85kg ±2% (including all mounting hardware)
- Dimensions: 160mm(L) × 160mm(W) × 22mm(H)
- Operating temperature: -20℃ to 150℃ (ambient)
- Surface hardness: HV 350-400
- Corrosion resistance: 96hrs salt spray test passed

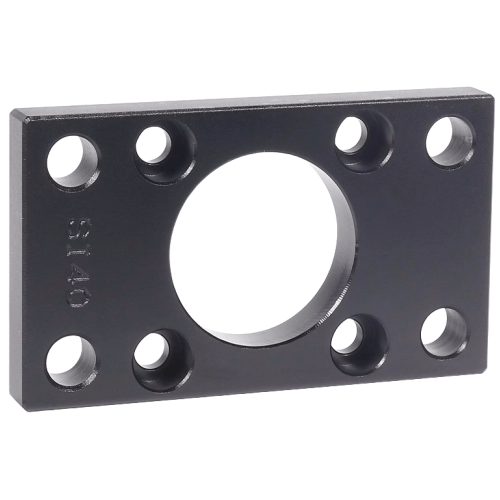

Precision-machined flange adapter plate with integrated vibration damping characteristics, featuring concentricity tolerance <0.05mm for high-precision cylinder alignment. Includes stainless steel M8×25 mounting bolts (class 8.8) and anti-loosening washers pre-assembled. Compatible with pneumatic and electromechanical actuators requiring ISO mounting compliance.
- Robotic welding arm base plate installations
- Packaging line vertical lift cylinder mounting
- CNC machine tool automatic door actuators
- Automated warehouse stacker crane positioning systems
- Food processing equipment with frequent washdown requirements
Mounting protocol:
Apply thread-locking compound to bolts before installation.
Use dial indicator to verify <0.1mm parallelism between flange face
and machine structure. Torque sequence: Diagonal pattern in 3 stages
(30%→60%→100% of final torque).
Critical note:
Not compatible with rotary actuators or applications exceeding
15Hz vibration frequency. Requires re-torquing after 50 operating hours.
| Property | Property Value |
|---|---|
| sku | F-SI80FA |
